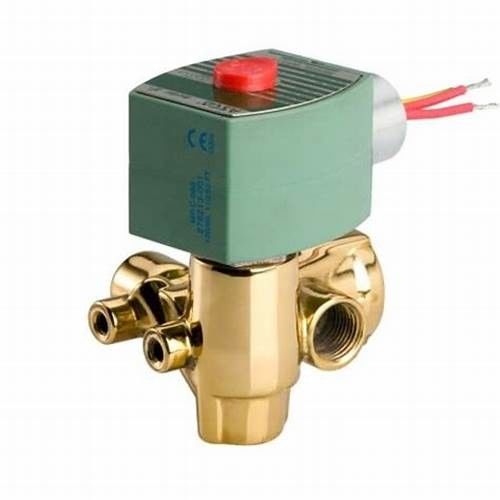

EF8321G002MO 24/DC ASCO Quick Exhaust Solenoid Valve Temperature Rating 120 °F(Fluid)

Product Description

ASCO RedHat Series 8321 Quick Exhaust Solenoid Valve, 3/8" x 3/8" x 3/8", FPT x FPT x FPT, 24 VDC, 10.6 W, 10 to 200 PSI, Brass, NEMA 3/3S/4/4X/6/6P/7/9, NC, 3-Way/2-Position, Pilot Operated, Manual/Momentary Operator, Quick Exhaust Solenoid Valve for Air-Inert Gas/Water/Light Oil.
Quick Exhaust Solenoid Valve; Type 3-Way/2-Position, Pilot Operated, Manual/Momentary Operator; Port Connection 3/8 Inch Female Threaded x 3/8 Inch Female Threaded x 3/8 Inch Female Threaded; Valve Position Normally Closed; Body Material Brass; Enclosure Type NEMA 3/3S/4/4X/6/6P/7/9; Input Supply Rating 24 Volt DC; Temperature Rating 120 Deg F(Fluid); Pressure Rating 10 to 200 PSI (Air-Inert Gas/Water/Light Oil); Media Handled Air-Inert Gas, Water, Light Oil; Inclusions/Features NBR Seal, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel and 17-7 PH Stainless Steel Core Spring, Copper Shading Coil, CA Pilot Seat Cartridge and Disc-Holder, Brass and 303 Stainless Steel Piston, Explosionproof, General Service; Application Multi-Industry; Applicable Standard UL, CE; Power Rating 10.6 Watt; Coil Insulation Type Class F; Orifice Size 9/32 Inch (Pressure), 11/32 Inch (Exhaust); Ambient Temperature Rating 32 to 104 Deg F; Flow Factor 0.8 Cv (Pressure), 1.2 Cv (Exhaust)

Features/Benefits
Designed for quick venting to 0 psi through the exhaust orifice; Resilient seated poppets for tight shutoff; Air is exhausted to quickly shift control valves; Mountable in any position

Valve Actuation   Solenoid - Air Pilot

Body Material      Brass, Stainless Steel

Media                  Air, Inert Gas, Light Oil, Water

Pipe / Port Size   1/4 "; 3/8 "

Port Type             NPTF

Function               3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open

Flow                      From .05-.1 Cv, From 0.1 Cv to 0.5 Cv, From .43 to .86 Kv, From .86 to 1.73 Kv

Voltage                100 to 240 AC/DC Voltage Ranging, 12 to 24 DC Voltage Ranging, 125 DC Battery Charging, 110 AC, 12 DC, 120 AC, 120 DC, 24 AC, 24 DC, 24 to 120 AC/DC Voltage Ranging, 240 DC, 250 DC Battery Charging | 50, 50/60, 60

Operating            EnvironmentCorrosive, Indoor, Outdoor

Standards / Regulations           ATEX Zone 1-21, ATEX Zone 2-22, CSA, IEC Ex Zone 1-21, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL

Standards / Regulations           ATEX Zone 1-21, ATEX Zone 2-22, CSA, IEC Ex Zone 1-21, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL
