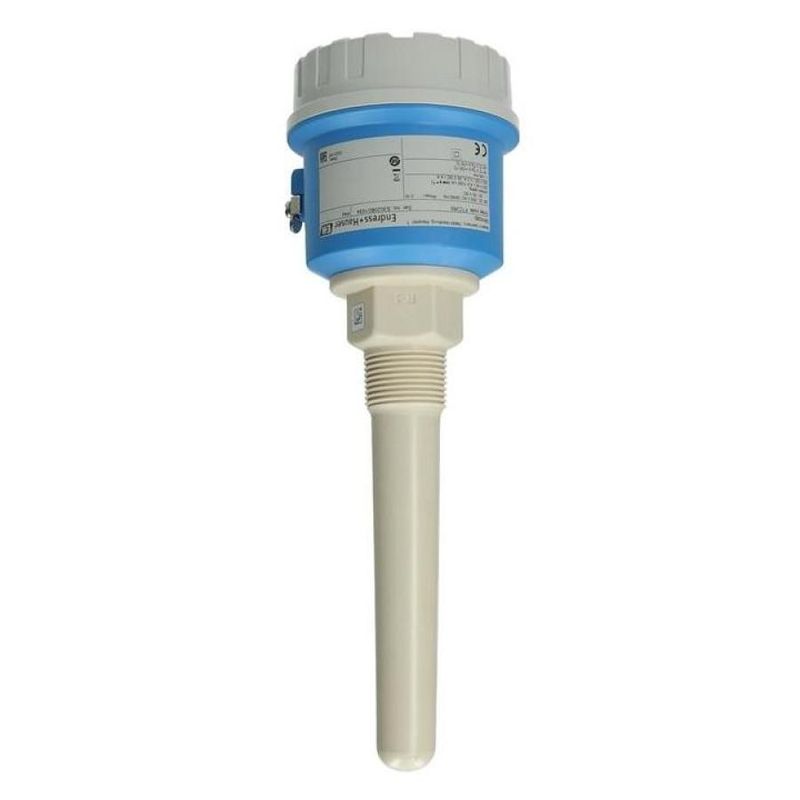

CapacitancePoint level detectionMinicap FTC260-AA4J1

Field of application

Minicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.

Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

Process connection: Threads

Temperature: -40 to +80°C (-40 to +176°F)

Pressure: -1 to +25bar (-14.5 to +360psi)

Sensor length: 140mm (5.51")

International explosion protection certificates, overfill prevention WHG

Measuring principle

Capacitive Solid

Characteristic / Application

Compact rod probe with build-up compensation

easy start up

Specialities

FDA-listed material

Process pressure / max. overpressure limit

-1 ... 25 bar

(-14.5 ... 360 psi)

Main wetted parts

PPS = Polyphenylene sulphide

(glass fibre content approx. 40%)

Process connection

R1"

NPT1"

Sensor length

140 mm (5.51")

Communication

PNP transistor output

Relay output (potential-free

change-over contact / SPDT)

Certificates / Approvals

ATEX , IEC Ex, FM, CSA, NEPSI, UK Ex

Options

Aluminium Housing

Application limits

Solids, grain size max. 30 mm (1.2"),

DK min 1,6

Flexural strength 1400 N (at probe tip)
