Bently Nevada  Asset Condition Monitoring 200350-00-00-CN

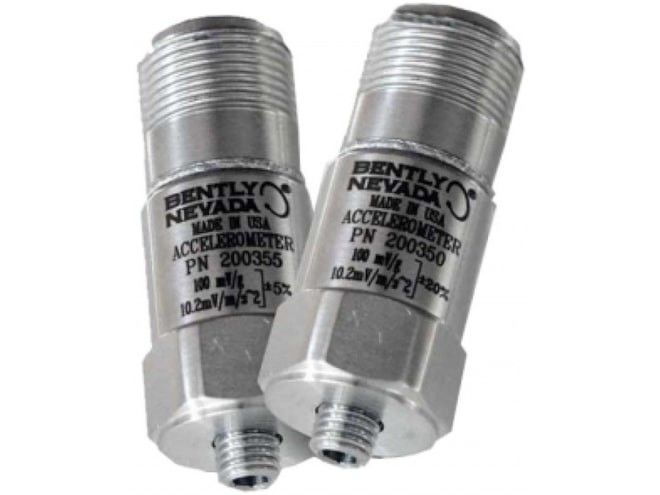

Description The 200350 and 200355 Accelerometers are general purpose, casemounted seismic transducers designed for use with TrendmasterÒ Pro Constant Current Direct Input Card 149811-02 and the Seismic Direct Input Card 164746-01. The 200350 and 200355 Accelerometers are contained within a hermetically sealed, stainless steel case. The design provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options. The 200350 and 200355 Accelerometers contain a piezoelectric sensing device, which generates charge when subjected to vibration. This charge is then converted electronically to a differential voltage signal, which is proportional to the acceleration that is parallel to the sensitive axis of the transducer.

• Product type : 200350 Accelerometers

• Made in U.S.A

• Mounting Stud : 00 = ¼-28 SS w/ Brass tip, 0.5"

• Tolerance : 00 = 100 mV/g ± 20%

• Agency Approvals Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)

• Hex Size : 11/16" (1.8 cm)

• Height : 1.65" (4.24 cm)

• Weight : 0.051 Kg

• Shipping Weight : 1 Kg

•

•
