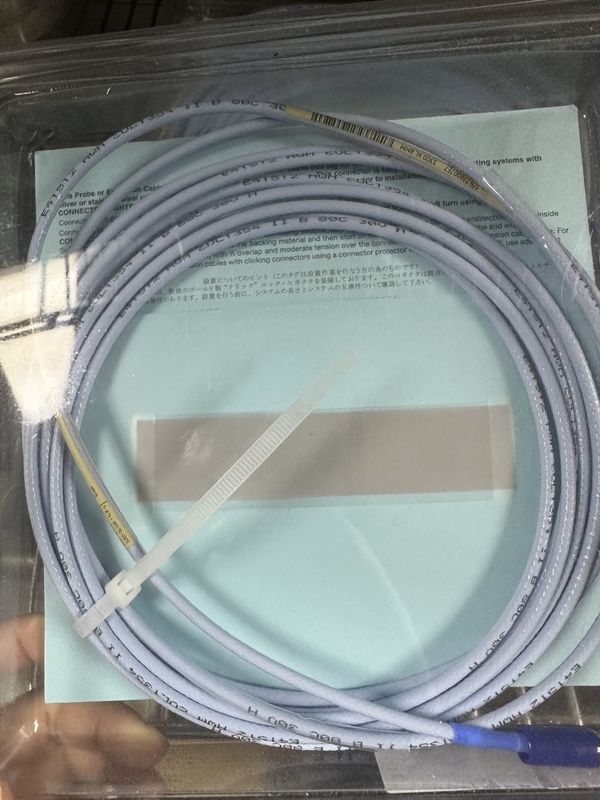

330130-040-00-CN  Bently Nevada 3300 XL Standard Extension Cable

The 3300 XL 8 mm Proximity Transducer System consists of:

• One 3300 XL 8 mm probe,

• One 3300 XL extension cable1, and

• One 3300 XL Proximitor Sensor2.

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Product type : 3300 XL Extension Cable

Made in U.S.A

Can add on Certificate Of Origin (COO)

Cable Length Option : 040 = 4.0 metres (13.1 feet)

Connector Protector and Cable Option : 00 = Standard cable

Agency Approval Option : CN = Approvals country specific  (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)

Extension cable capacitance : 69.9 pF/m (21.3 pF/ft) typical

Extension Cable Material : 75  triaxial, fluoroethylene propylene (FEP) insulated.

Extension Cable : 34 g/m (0.4 oz/ft)

Weight : 0.136 Kg
