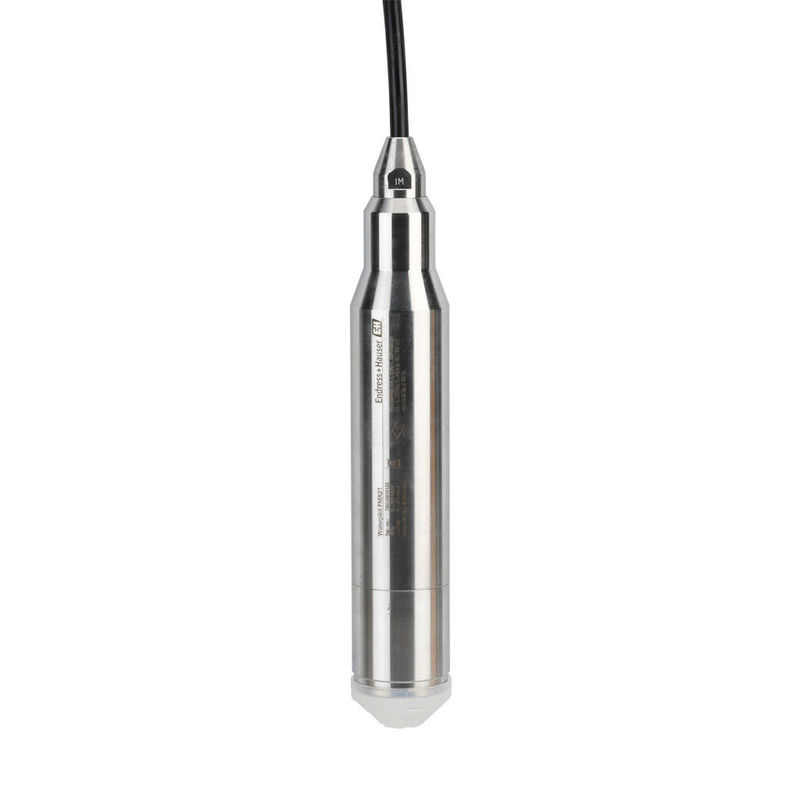

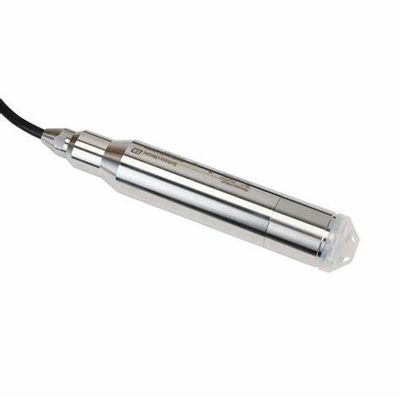

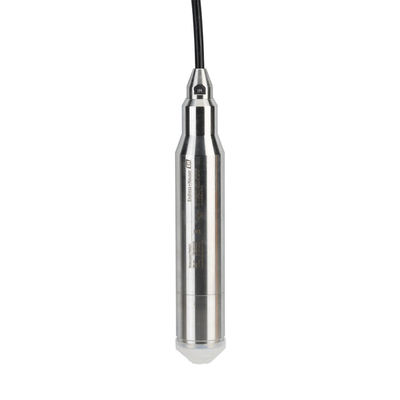

Endress Hauser HydrostaticLevel measurementWaterpilot FMX21-AA111HGD10H

Name: Endress Hauser HydrostaticLevel measurementWaterpilot FMX21-AA111HGD10H
Brand: Achievers Automation Limited
SKU: FMX21-AA111HGD10H
Availability: InStock

Brand Name:	Endress Hauser
Model Number:	FMX21-AA111HGD10H
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ATEX

Supply Voltage:

10.5 ...35V DC

Reference Accuracy:

0.2% 0.1% (optional)

Long Term Stability:

0.1% Of URL/year

Measuring Cell:

100mbar...20bar (1.5psi...300psi)

Marine Approvals:

GL/ ABS/ BV/ DNV/ LR

Drinking Water Approvals:

NSF/ KTW/ ACS

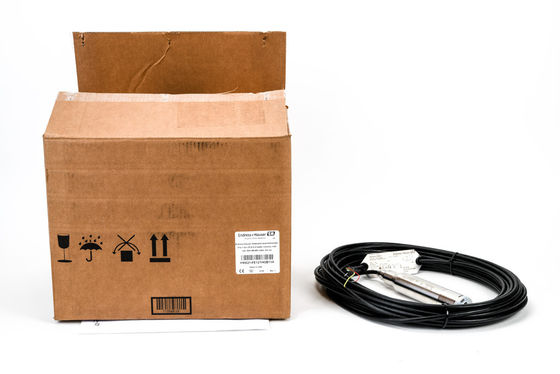

Packaging Details:

carton

Supply Ability:

100pcs per month

Product Description

Endress Hauser HydrostaticLevel measurementWaterpilot FMX21-AA111HGD10H

Field of application

The Waterpilot FMX21 transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and environmental applications for hydrostatic level measurement. With HART output, the measuring ranges can be freely adjusted and a density-compensated level measurement can be activated. It is certified for drinking water and offers integrated temperature measurement. Versions for applications in wastewaters and sludges or usage in salt water are also available.

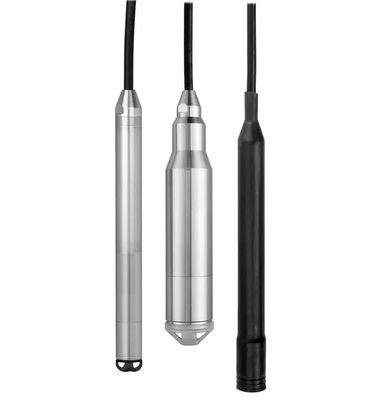

Three different versions for drinking water, wastewater and sewage, saltwater.

Process connections: Suspension clamp, cable gland
Temperature: –10 to +70°C (14 to 158°F)
Measuring range: 0 to 20bar / 200m H20 (0 to 300psi / 600ft H2O)
Accuracy: ±0.2%, "Platinum" ±0.1%
International explosion protection certificates, marine approvals, drinking water approval

Potentiometric

Measuring principle

Hydrostatic pressure

Characteristic	Compact probe with ceramic cell for hydrostatic level measurement,

	Diameter = 22 mm: General applications, fresh water

	Diameter = 42 mm: Waste water applications

	Diameter = 29 mm: Salt water applications

Supply voltage

10.5 ...35V DC

Reference Accuracy

0.2%

0.1% (optional)

Long term stability

0.1% of URL/year

Process temperature

-10°C...70°C

(14°F...158°F)

Diameter 29 mm (1.14"): 0°C...50°C

(32°F...122°F)

Ambient temperature

-10°C...70°C

(14°F...158°F)

Diameter 29 mm (1.14"):

0°C...50°C

(32°F...122°F)

Measuring cell

100mbar...20bar

(1.5psi...300psi)

Process connection

Suspension clamp

Cable mounting screws

Communication

4...20 mA

4...20 mA HART

Certificates / Approvals

ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex

Marine approvals

GL/ ABS/ BV/ DNV/ LR

Drinking water approvals

NSF/ KTW/ ACS

Endress Hauser HydrostaticLevel measurementWaterpilot FMX21-AA111HGD10H 0
