Field of application

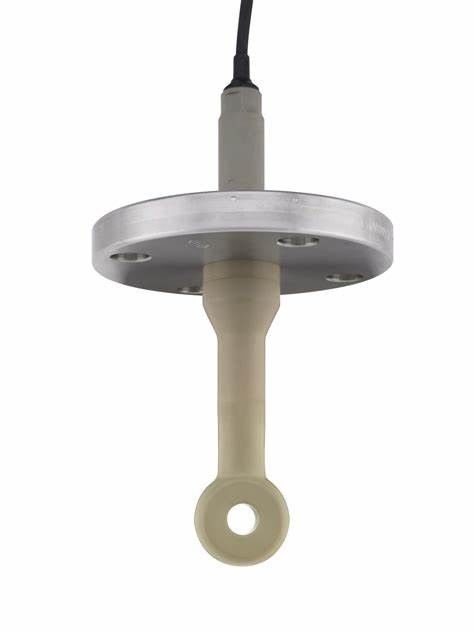

Indumax CLS50D is a digital inductive conductivity sensor for standard, hazardous and high-temperature applications. Benefit from high chemical resistance and long durability thanks to robust materials (PFA, PEEK). Moreover, it is insensitive to soiling and performs reliable and repeatable even in harsh and aggressive media. Thanks to Memosens, CLS50D combines maximum process and data integrity with simple operation. It resists corrosion and moisture and facilitates predictive maintenance.

Indumax CLS50D measures toroidal conductivity in:

• Chemicals:
  - Concentration measurement of acids and bases
  - Quality monitoring of chemical products in tanks and pipes

• Food & Beverages:
  - Phase separation of product/product mixtures in pipe systems

• Life Sciences:
  - Phase separation of product/product mixtures in pipe systems

• Wastewater industry:
  - Inlet monitoring

With its international explosion protection approvals, such as ATEX, FM, CSA, NEPSI, it is suitable for hazardous areas.

Potentiometric

Measuring principle

Inductive

Application

Chemical industry, process

Characteristic

Analog or digital, inductive conductivity sensor for standard, Ex and

high-temperature applications

Measuring range

2µS/cm to 2000 mS/cm

Measuring principle

Inductive conductivity measurement

Design

No direct contact with the media because of the sensor coating made of highly resistant material

Material

PEEK or PFA

Dimension

Electrode:

Outside diameter: 47.5 mm (1.87 inch)

Inside diameter: 15 mm (0.59 inch)

Inside diameter (PEEK version): 15.5 mm (0.61 inch)

Process temperature

PEEK: max. 125°C (max. 260 °F)

PFA: max. 110°C (max. 230 °F)

Process pressure

PEEK: max. 21 bar (max. 304.5 psi)

PFA: max. 17 bar (max. 246.5 psi)

Temperature sensor

Integrated Pt1000

Ex certification

ATEX, IECEx, NEPSI, FM, CSA, TIIS, EAC

Connection

Process connection: NPT1", DN50, AINSI, JIScable: fixed cable connection

Ingress protection

IP 68 / NEMA type 6

Additional certifications

Calibration certification of the cell constant
