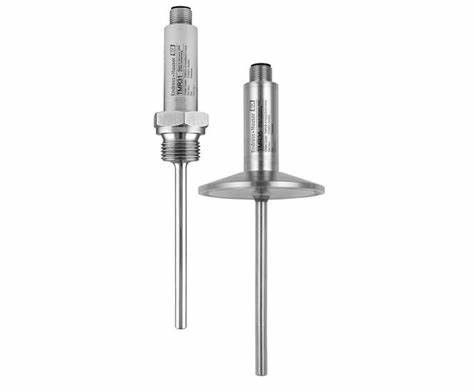

Endress Hauser  TMR31-A1BABBAX1AAA Compact thermometer

Field of application

With cost efficiency, optimal use of space, reliable operation, easy installation and commissioning the TMR31 fulfills the requirements of modern process measurement technology. Vibration-proof integrated thin-film sensors guarantee highest operational safety at the fastest response times.

The TMR31 compact thermometers are used to measure temperatures from -50 °C to +150 °C (-58 °F to +302 °F), or up to +200 °C (+392 °F) with neck. The most common installation locations are tanks and pipes. TMR31 with process connections for general applications.

Potentiometric

Measuring principle

Resistance Temperature Detector

Characteristic / Application

metric style

compact temperature probe

fast response time

threaded process connection

with or without neck

Thermowell / protection tube

without (not intended to use with thermowell)

Insert / probe

pipe version, isolated wires, not flexible

Outer diameter protection tube / Insert

4,00 mm (0,16")

6,00 mm (0,24'')

Max. immersion length on request

up to 600,00 mm (23,62'')

Material protection tube/ thermowell

1.4404 (316L)

Process connection

male thread:

G1/4"

G1/2"

NPT1/4"

NPT1/2"

M14x1.5

M18x1.5

BSPT R1/2"

Tip shape

straight

Surface roughness Ra

0,8 μm (32 μin.)

Operating temperature range

PT 100:

-50 °C ...200 °C

(-58 °F ...392 °F)

Max. process pressure (static)

at 20 °C: 100 bar (1.450 psi)

Accuracy

class A acc. to IEC 60751

Response time

t50 = 1 s

t90 = 2 s

Integration head transmitter

no (4…20mA Signal)

Certification

Marine approval

UL 3111-1
