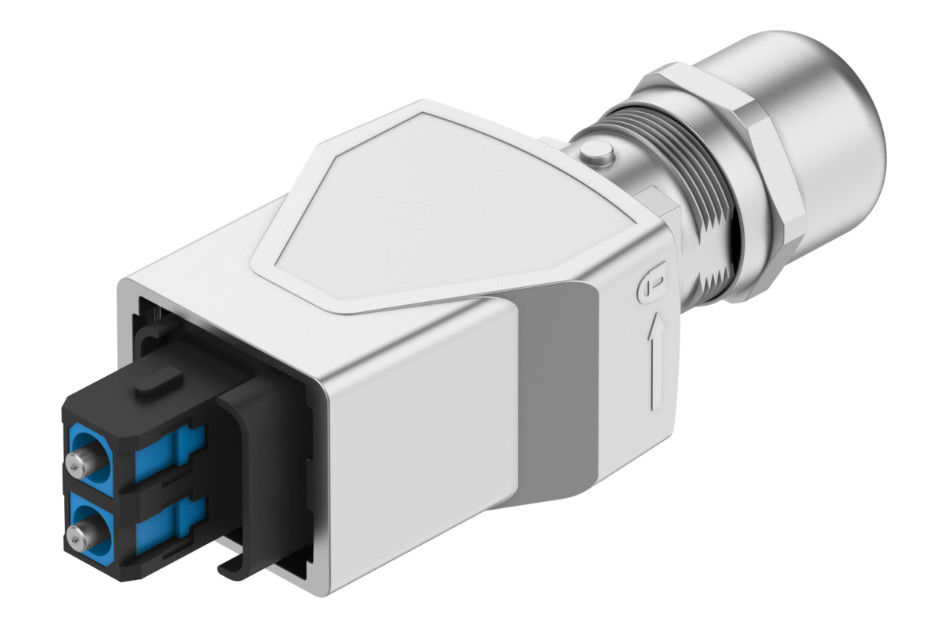

Festo Plug NOCC-M-S-SCRJG2PP-C5-PN Meets AIDA requirements

• Conforms to standard

  IEC 61754-24

• Protocol

  Ethernet

  PROFINET FOC

• Additional functions

  Meets AIDA requirements

• Contact durability

  100

• Cable outlet

  Straight

• Product weight

  84 g

• Optical port 1, connection type

  Plug

• Optical port 1, style

  Rectangular

• Optical port 1, connection technology

  SC-RJ as per IEC 61754-24

• Optical port 1, number of pins/wires

  2

• Optical connection 1, occupied pins/wires

  2

• Optical port 1, plug pattern

  00995772

• Optical port 1, type of mounting

  Push-pull with interlock to prevent unintentional pulling

• Optical port 1, ferrule diameter

  2.5 mm

• Optical port 2, connection technology

  Lock nut

• Tightening torque

  0.42 Nm

• Wire diameter

  0.98 mm ... 1 mm

• Type of wire

  Polymer fiber

• Wavelength

  650 nm

• Fire tested

  UL94 V-0

• Cable diameter

  5.5 mm ... 10 mm

• Degree of protection

  IP65

  IP67

• Note on degree of protection

  In mounted state

• Ambient temperature

  -25 °C ... 70 °C

• Storage temperature

  -40 °C ... 70 °C

• LABS (PWIS) conformity

  VDMA24364-A1-L

• Note on materials

  RoHS-compliant

• Corrosion resistance class (CRC)

  1 - Low corrosion stress

• Housing material

  Die-cast zinc, nickel-plated

• Housing colour

  Silver

• Seals material

• NBR

  TPE

• Material ferrule

  Copper alloy
