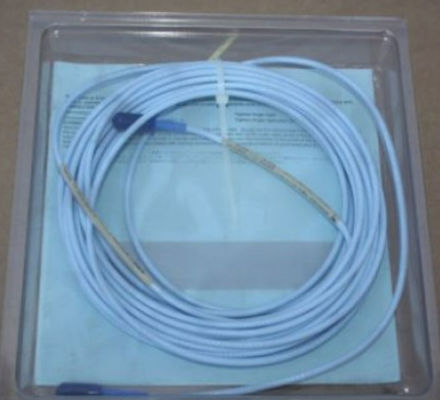

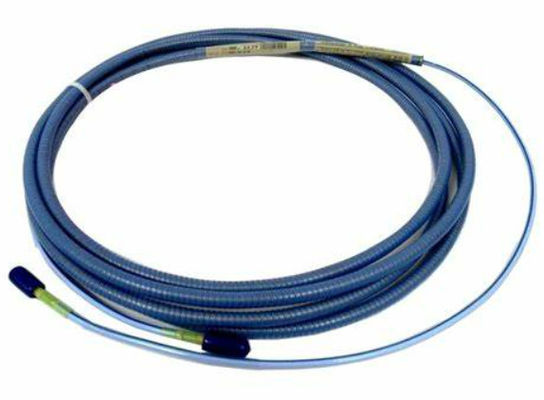

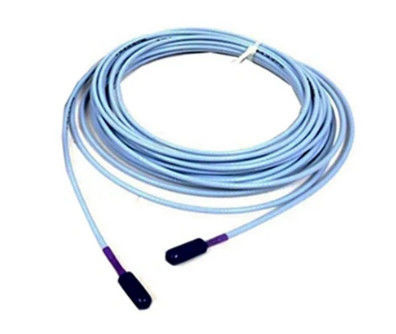

330854-040-24-00 Bently Nevada 3300 XL 25 mm Extension Cable 4.0 metres (13.1 feet)

The 3300 XL 25 mm probe is designed for maximum survivability in the harshest steam turbine DE environments. It can continually operate and maintain its accuracy in high temperatures up to 200 °C (392 °F), and can withstand intermittent high temperatures up to 250 °C (482 °F). The 25 mm probe has both a front and rear seal which, combined with the FluidLoc cable (standard on all 25 mm probes), prevents moisture from entering the probe tip. Special high-temperature ClickLoc connectors are also standard on the probe and extension cable. Each probe and cable are provided with connector protectors and a disposable connector protector installation tool to ensure that the connectors remain free of contamination. The ClickLoc connector on the probe lead has a removable collar that facilitates routing the cable through tight clearances.

Description

• Manufacturer : Bently Nevada

• Product No. : 330854-080-24-00

• Product type : 3300 XL 25 mm Extension Cable

• Cable Length Option : 040 = 4.0 metres (13.1 feet)

• Armor and Cable Option : 24 = High Temperature FluidLoc cable

• Agency Approval Option : 00 = No Approvals

• Extension Cable Material : 75 ohm triaxial, perfluoroalkoxyethylene (PFA) insulated FluidLoc cable.

• Extension cable capacitance : 69.9 pF/m (21.3 pF/ft) typica

• Operating and Storage Temperature : -35°C to +200°C (-31°F to +392°F)

• Weight : 0.045 Kg
