TE DBL 125-3 Distribution Block Feed Through 1SNL312530R0000

Name: TE DBL 125-3 Distribution Block Feed Through 1SNL312530R0000
Brand: Achievers Automation Limited
SKU: DBL 125-3
Availability: InStock

Brand Name:	TE
Model Number:	DBL 125-3
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Switzerland

Certification:

ATEX

Amplitude Linearity:

±1% To 490 M/ S2 (50 G) Peak

Current Rating:

Ul Flammability Rating:

UL 94V-0

Color:

Black

Application:

Industrial Automation

Insulation Resistance:

≥1000MΩ

Primary Product Color:

Gray

Accuracy:

± 0.5% Of Full Scale

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

TE DBL 125-3 Distribution Block

TE Feed Through Distribution Block

1SNL312530R0000 Distribution Block

Product Description

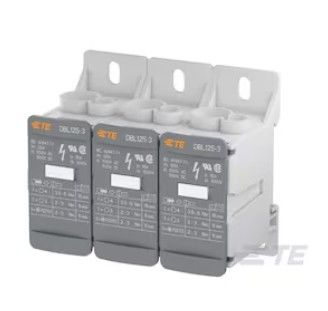

TE DBL 125-3 Distribution Block Feed Through 1SNL312530R0000

TE DBL 125-3 Distribution Block Feed Through 1SNL312530R0000 0

TE Connectivity is a global leading industrial technology company headquartered in Switzerland. With a history of over 75 years, it operates in 140 countries worldwide. The company provides connectivity and sensing solutions widely used in multiple fields such as transportation, industry, and healthcare, dedicated to creating a safer, more sustainable, efficient, and interconnected future.

Distribution Block, Inputs 1x 8-2AWG 1x 10-6AWG Outputs 6x 14-6AWG, 115 Amp, Feed Through, Screw Clamp, Din Rail Mount/Panel Mount.

Power Distribution Blocks, 3x1 Pole, 125A Current Rating (IEC),115A Current Rating (UL), 8 Position, Wire & Cable, 125A Contact,Current Rating (Max).

Electrical Characteristics
Voltage Rating (IEC) (VAC):	1000
Voltage Rating (IEC) (VDC):	1500
Voltage Rating (CSA) (V):	1000
Dielectric Withstanding Voltage (Max) (V):	2200
Input Current (Max) (A):	125
Impulse Withstanding Voltage Rating (IEC) (V):	8000
Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):	1000
Peak Withstanding Current Rating (kA):	30
Power Loss (W):	12
Current Rating (IEC) (A):	125
Current Rating (UL) (A):	115

EU ELV Directive 2000/53/EC	3 - Lead in copper alloy containing up to 4% lead by weight.
Solder Process Capability	Not reviewed for solder process capability

TE DBL 125-3 Distribution Block Feed Through 1SNL312530R0000 1

TE DBL 125-3 Distribution Block Feed Through 1SNL312530R0000 2

https://www.achieversinstruments.com/

Achievers Automation Limited is a well-established player in the field of industrial automation, boasting a rich and extensive experience of more than 12 years.

Over these years, the company has dedicated itself to dealing with a comprehensive and complete range of industrial automation components and instruments. With an unwavering commitment to excellence, the team at Achievers always goes the extra mile, striving their absolute best to provide top-notch quality goods and highly efficient, timely services to our esteemed and valued customers.

These customers hail from over 45 countries across the globe, spanning different continents and diverse industrial landscapes.

TE DBL 125-3 Distribution Block Feed Through 1SNL312530R0000 3

FAQ of Achievers

Q:Are preferential prices available?

A: We provide customers with competitive product prices and the biggest discounts through a long-term cooperative supply chain system.

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT,UPS with good price.

Q:What is the warranty of goods?

A: One-year Warranty.

Q:Which are the best-selling products?

A: Many brands of products have been supplied to customers from all over the world for a long time. For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W,Emerson Hand Communicator TREXCHPNAWS1S,xnx transmitter honeywell
