E+H Hydrostatic Level measurement Waterpilot FMX21 for Industrial Applications

Name: E+H Hydrostatic Level measurement Waterpilot FMX21 for Industrial Applications
Brand: Achievers Automation Limited
SKU: E+H-Waterpilot FMX21
Availability: InStock

Brand Name:	EATON
Model Number:	E+H-Waterpilot FMX21
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ATEX

Document:

TI00431PEN_1822-00.pdf

Process Connection:

Suspension Clamp Cable Mounting Screws

Communication:

4...20 MA 4...20 MA HART

Certificates / Approvals:

ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex

Marine Approvals:

GL/ ABS/ BV/ DNV/ LR

Drinking Water Approvals:

NSF/ KTW/ ACS

Options:

Absolute Measuring Cell Integrated Temperature Sensor Pt100, 4-wire Customer Specific Adjustment Customer Specific Cable Marking

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

Waterpilot FMX21

Hydrostatic Level measurement Waterpilot

Product Description

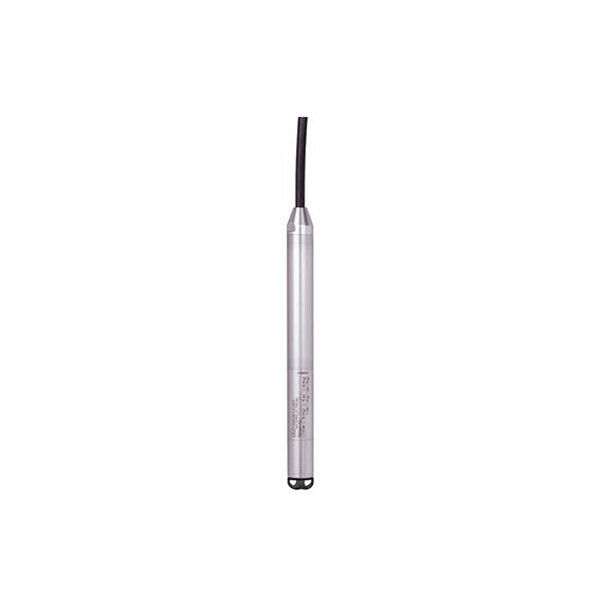

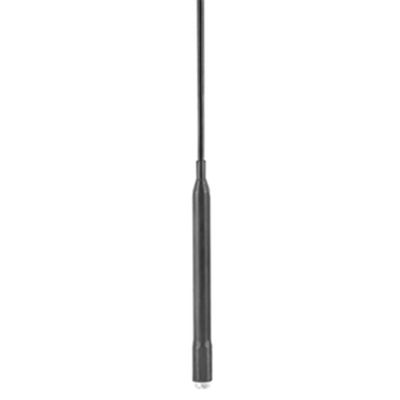

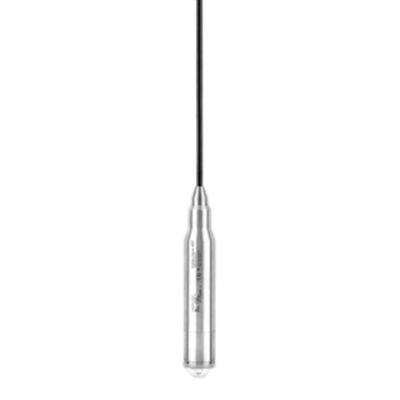

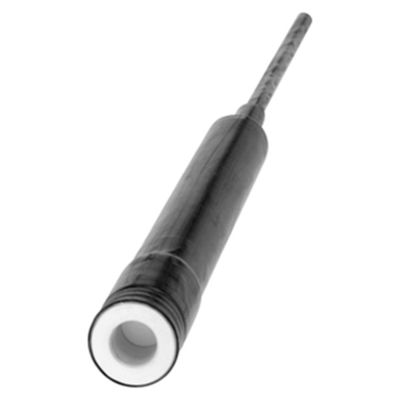

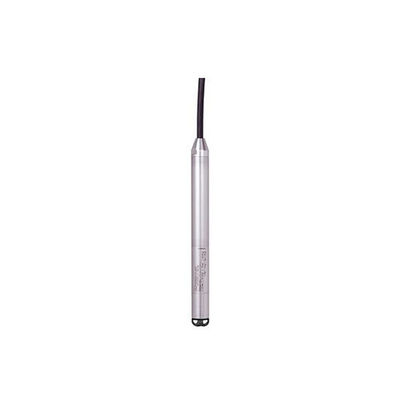

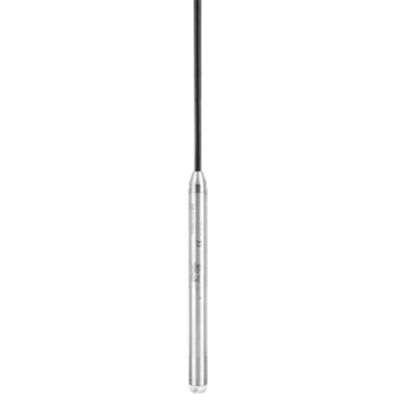

Hydrostatic Level measurement Waterpilot FMX21

E+H Hydrostatic Level measurement Waterpilot FMX21 for Industrial Applications 0

Endress+Hauser is one of the global leaders in providing industrial process control measuring instruments, services and solutions.
From the perspective of economic benefits, safety and environmental impact, E+H provides process automation solutions for flow, level, pressure, analysis, temperature, data acquisition and communication, and process optimization. Customers come from various industries, including chemicals, food and beverages, life sciences, power and energy, mining, mineral processing and metallurgy, oil and gas, water and sewage, etc.

he Waterpilot FMX21 transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and environmental applications for hydrostatic level measurement. With HART output, the measuring ranges can be freely adjusted and a density-compensated level measurement can be activated. It is certified for drinking water and offers integrated temperature measurement. Versions for applications in wastewaters and sludges or usage in salt water are also available.

Measuring principle	Hydrostatic pressure
Characteristic	Compact probe with ceramic cell for hydrostatic level measurement, Diameter = 22 mm: General applications, fresh water Diameter = 42 mm: Waste water applications Diameter = 29 mm: Salt water applications
Supply voltage	10.5 ...35V DC
Reference Accuracy	0.2% 0.1% (optional)

Long term stability	0.1% of URL/year
Process temperature	-10°C...70°C (14°F...158°F) Diameter 29 mm (1.14"): 0°C...50°C (32°F...122°F)
Ambient temperature	-10°C...70°C (14°F...158°F) Diameter 29 mm (1.14"): 0°C...50°C (32°F...122°F)
Measuring cell	100mbar...20bar (1.5psi...300psi)

E+H Hydrostatic Level measurement Waterpilot FMX21 for Industrial Applications 1

https://www.achieversinstruments.com/ and Emerson Hand Communicator TREXCHPNAWS1S, rosemount 0068

E+H Hydrostatic Level measurement Waterpilot FMX21 for Industrial Applications 3

Achievers Automation Limited is a well-established player in the field of industrial automation, boasting a rich and extensive experience of more than 12 years.

Over these years, the company has dedicated itself to dealing with a comprehensive and complete range of industrial automation components and instruments. With an unwavering commitment to excellence, the team at Achievers always goes the extra mile, striving their absolute best to provide top-notch quality goods and highly efficient, timely services to our esteemed and valued customers.

These customers hail from over 45 countries across the globe, spanning different continents and diverse industrial landscapes.
