| Brand Name: | BENTLY |
| Model Number: | 9200-01-01-10-00 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Attribute | Value |
|---|---|
| Operating Temperature | -29°C to +121°C (-20°F to +250°F) |
| Mounting Orientation | Vertical |
| Output Signal | Voltage proportional to vibration velocity |
| Cable Options | 84661-17, 9571-17 (standard) |
| Optional Accessories | 9513 speed-to-displacement converter |
| Vibration Measurement | Bearing housings, casings, structures |

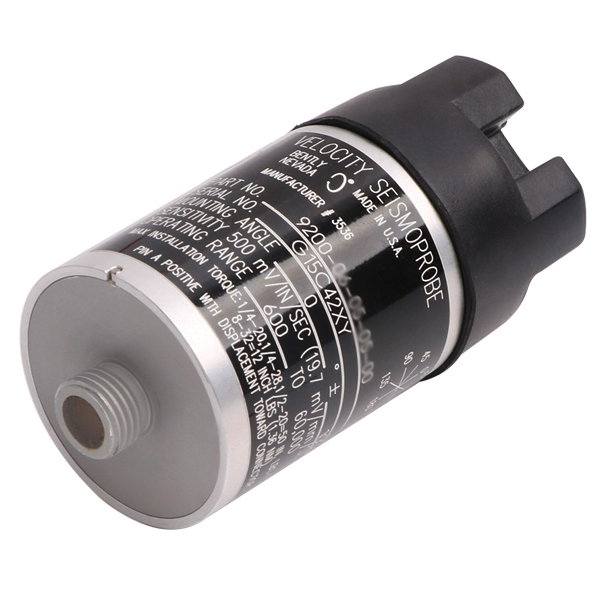

| Model | Bently Nevada 9200-01-01-10-00 |
|---|---|
| Type | Two-wire velocity sensor |
| Measurement Principle | Moving-coil technology |
| Measured Parameter | Absolute vibration velocity |
| Sensitivity | 20 mV/mm/s ±5% (500 mV/in/s) @ 100 Hz |
| Frequency Response | 4.5 Hz to 1 kHz (270 to 60,000 cpm) |
| Typical Applications | Turbines, compressors, motors, pumps |
|---|---|
| Industry Sectors | Power generation, petrochemical, steel manufacturing |
| Environmental Resistance | Excellent corrosion resistance |
| Power Requirements | Self-powered (no external power needed) |
| Shock Resistance | High resistance to mechanical shock |
| System Integration | Compatible with 3500/42 monitoring system |
