| Brand Name: | BENTLY |
| Model Number: | 109549-01 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |

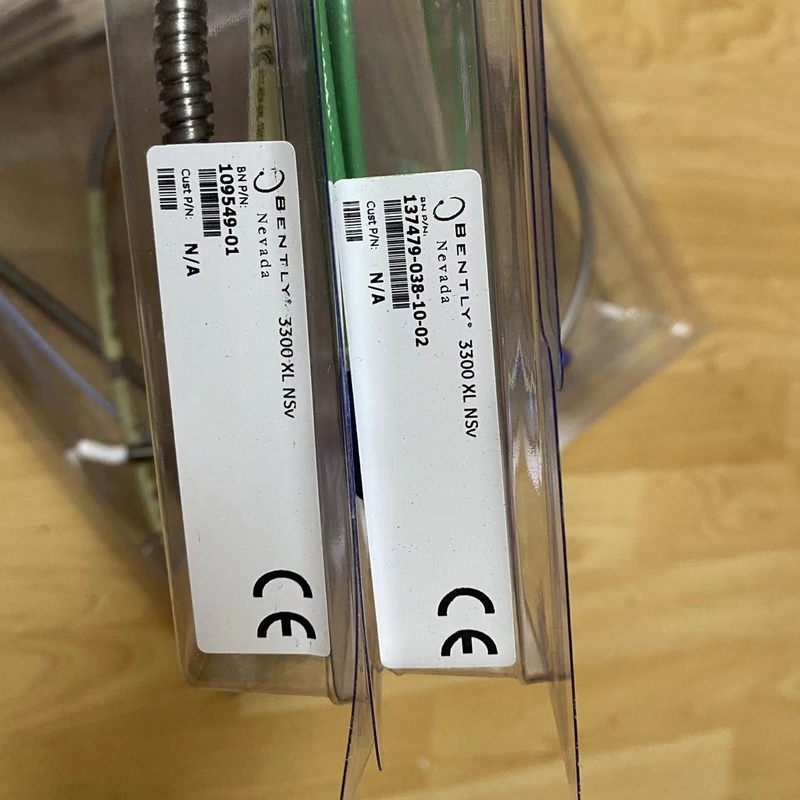

The Bently Nevada 109549-01 is a critical replacement module designed for the legacy 3300 NSv Proximitor® Seismic Monitor system. This system is essential for machinery protection and condition monitoring in industrial environments, safeguarding high-value assets like turbines, compressors, and pumps.
| Attribute | Value |
|---|---|
| Channels Supported | Powers and conditions signals for multiple probes and sensors |
| Signal Conditioning | Provides filtering and signal preparation for monitoring modules |
| System Integration | Seamless replacement for original modules in 3300 NSv frames |
| Diagnostic LEDs | Module Status and Power Indicator LEDs |
| Redundancy Support | Designed for high-availability systems with redundant power |
| Protection Features | Over-voltage and reverse polarity protection |
| Specification | Value |
|---|---|
| Input Power | 90 - 265 VAC, 47 - 63 Hz |
| Output Voltages | +24 VDC (Probe Power), ±15 VDC (Internal Logic) |
| Sensor Excitation | Provides -24 VDC for Eddy Current Probes |
| Sensor Compatibility | Eddy Current Probes, Velocity Seismometers |
| Connector Type | Front-Accessible Terminal Blocks |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Detail | Value |
|---|---|
| Module Form Factor | 4-Slot Monitor Rack Module |
| Dimensions (H x W x D) | Approx. 195mm x 57mm x 200mm (7.7" x 2.25" x 7.9") |
| Weight | Approx. 0.9 kg (2 lbs) |
| Mounting | DIN Rail Mount within 3300 NSv Rack |
| Regulatory Compliance | CE Marked, RoHS Compliant |
| Protection Rating | IP20 (Installed in Enclosure) |
