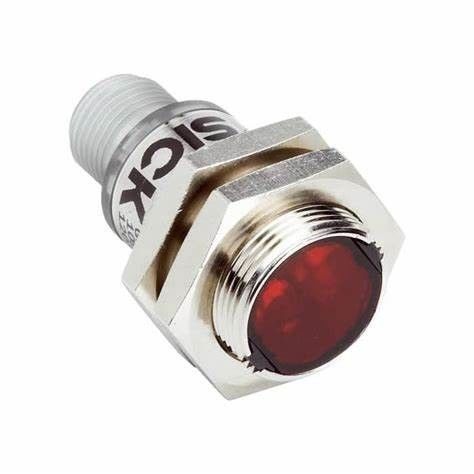

SICK GRL18SG-P233Z | GR18 CYLINDRICAL PHOTOELECTRIC SENSORS

Name: SICK GRL18SG-P233Z | GR18 CYLINDRICAL PHOTOELECTRIC SENSORS
Brand: Achievers Automation Limited
SKU: GRL18SG-P233Z
Availability: InStock

Brand Name:	SICK
Model Number:	GRL18SG-P233Z
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Functional Principle Detail:

Dual Lens

Dimensions (W X H X D):

18 Mm X 18 Mm X 38.1 Mm

Housing Design (light Emission):

Cylindrical

Thread Diameter (housing):

M18 X 1

Sensing Range Max.:

0.03 M ... 7.2 M

Wave Length:

650 Mm

Adjustment:

Potentiometer, 270°

Ripple:

< 5 Vpp

Packaging Details:

carton

Supply Ability:

100pcs per month

Product Description

SICK GRL18SG-P233Z | GR18 CYLINDRICAL PHOTOELECTRIC SENSORS

Product Overview

Manufacturer : SICK Sensors
Part Number : GRL18SG-P233Z
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Dual lens
Dimensions (W x H x D) : 18 mm x 18 mm x 38.1 mm
Housing design (light emission) : Cylindrical
Thread diameter (housing) : M18 x 1
Optical axis : Axiall, fully flush
Sensing range max. : 0.03 m ... 7.2 m
Sensing range : 0.06 m ... 6 m
Type of light : Visible red light
Light source : PinPoint LED
Light spot size (distance) : Ø 175 mm (7 m)
Wave length : 650 nm
Adjustment : Potentiometer, 270°
Supply voltage : UB 10 V DC ... 30 V DC
Ripple : < 5 Vpp
Current consumption : 30 mA
Switching output : PNP
Switching mode : Light Switching
Signal voltage NPN HIGH/LOW : VS - (≤ 3 V) / approx. 0 V
Output current Imax. : ≤ 100 mA
Response time : < 500 µs
Switching frequency : 1000 Hz
Connection type : Connector M12, 3-pin
Circuit protection : A, B, D
Protection class : III
Housing material : Metal, Nickel-plated brass and ABS
Optics material : Plastic, PMMA
Enclosure rating : IP67
