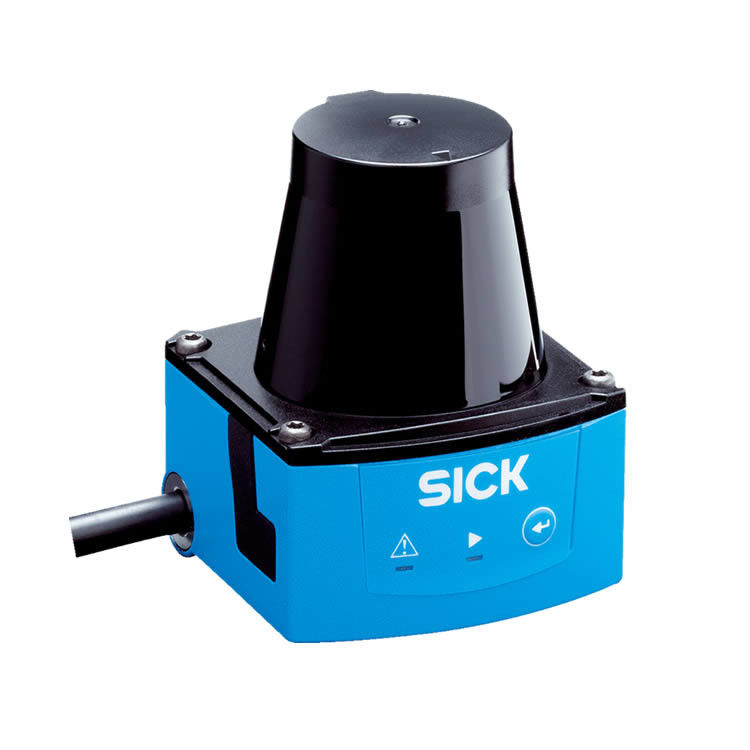

2m SICK Instruments TIM320-1031000 TiM 2D Lidar Sensors

Name: 2m SICK Instruments TIM320-1031000 TiM 2D Lidar Sensors
Brand: Achievers Automation Limited
SKU: TIM320-1031000
Availability: InStock

Brand Name:	SICK
Model Number:	TIM320-1031000
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Response Time:

1 Scan, Typ. 67 Ms

Systematic Error:

± 40 Mm 2)

Integrated Application:

Field Evaluation

Simultaneous Evaluation Cases:

1 (3 Fields)

MTBF:

> 100 Years

Supply Voltage:

9 V DC ... 28 V DC

Housing Color:

Light Blue (RAL 5012)

Working Range:

0.05 M ... 4 M

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

2m SICK Instruments

TIM320-1031000

TiM 2D lidar sensors

Product Description

SICK TIM320-1031000 | TiM 2D LIDAR SENSORS

Features

SICK TIM320-1031000 | TiM 2D LIDAR SENSORS 2m Max Range

Application Indoor

Measurement principle HDDM+

Light source Infrared (850 nm)

Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle Horizontal 270°

Scanning frequency 15 Hz

Angular resolution Horizontal 1°

Working range 0.05 m ... 4 m

Scanning range At 10% remission factor 2 m

Mechanics/electronics

Connection type 1 x 15-pin D-sub HD male connector (0.9 m)

Supply voltage 9 V DC ... 28 V DC

Power consumption Typ. 4 W, 16 W with 4 max. loaded digital outputs

Output current ≤ 100 mA

Housing color Light blue (RAL 5012)

Enclosure rating IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013)

Protection class III (IEC 61140:2016-1)

Weight 150 g, without connecting cables

Dimensions (L x W x H) 60 mm x 60 mm x 79 mm

MTBF > 100 years

Safety-related parameters

MTTFD 100 years
