PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG

Name: PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG
Brand: Achievers Automation Limited
SKU: EVF566
Availability: InStock

Brand Name:	IFM
Model Number:	EVF566
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Manufacturer:

IFM

Product No:

EVF566

Protection Class:

Molded-body Material:

PA 6.6

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

PA 6.6 ifm evf566

EVF566

SDOAH040VASFKPG

Product Description

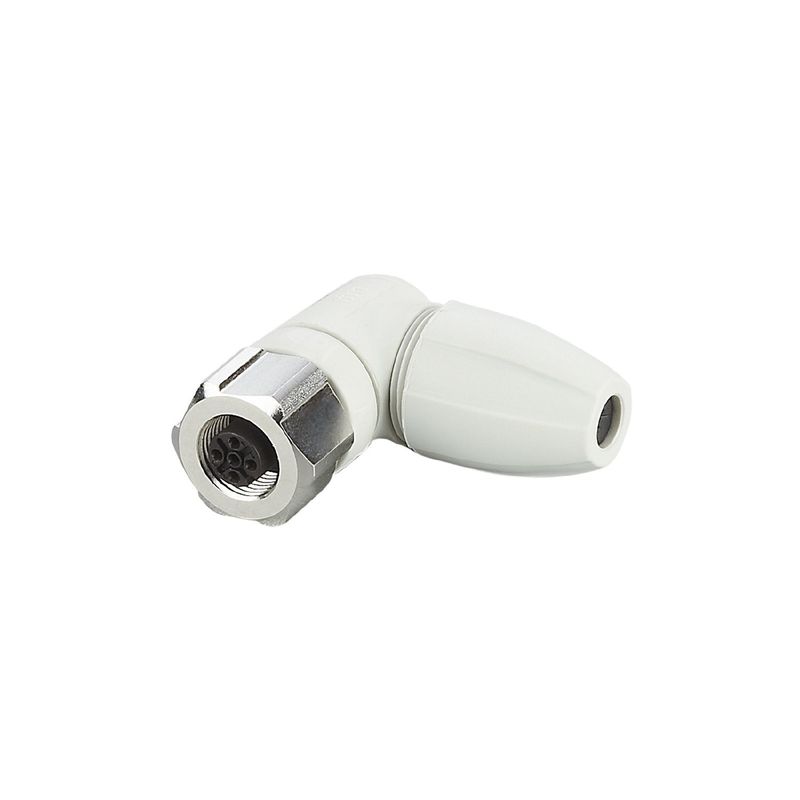

IFM Female wirable connectors EVF566 SDOAH040VASFKPG

Gold-plated contacts for reliable electrical connections

High protection rating for the requirements of harsh industrial environments

Wide operating temperature range

Safe cable connection with screw terminals

System	Free from silicone; gold-plated contacts
Application	sanitary and wet areas in the food industry
Free from silicone	yes

Electrical data

Operating voltage[V]	< 250 AC / < 300 DC
Protection class	II
Max. current load total[A]	4; (...40 °C)

Operating conditions

Ambient temperature[°C]	-25...100
Storage temperature[°C]	-25...55
Storage humidity[%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight[g]	41.8
Molded-body material	PA 6.6
Material nut	stainless steel (1.4404 / 316L)
Sealing material	EPDM

Remarks

Pack quantity

1 pcs.

Electrical connection

screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17

Electrical connection - Socket

Connection

Connector: 1 x M12, angled; coding: A; Moulded body: PA 6.6, grey; Locking: stainless steel (1.4404 / 316L); sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!
