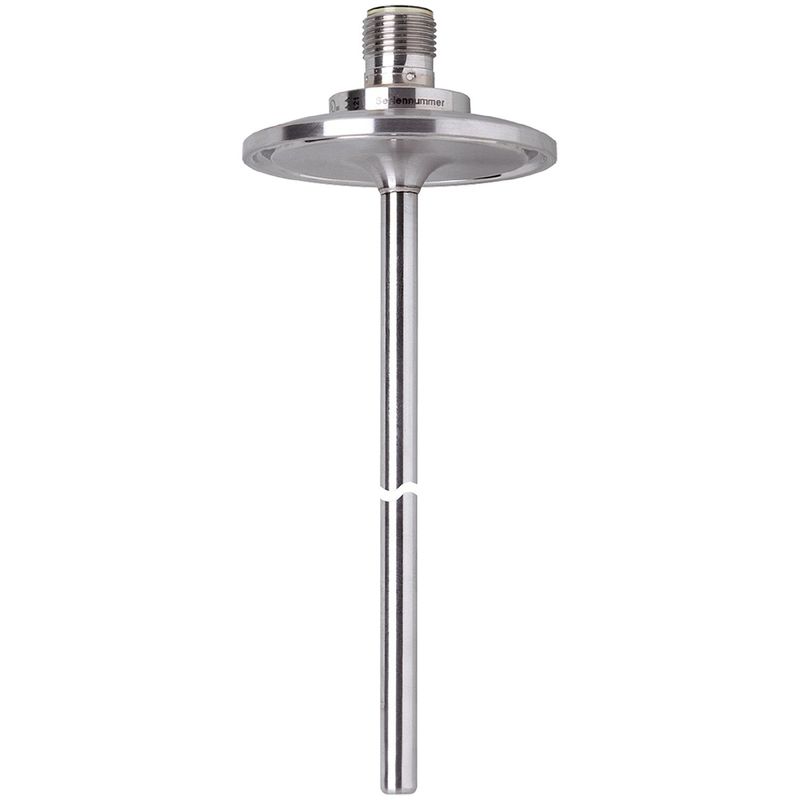

Hygienic Systems IFM Temperature Sensor Process Connection TM4811 TM-050KFEC01 US

Name: Hygienic Systems IFM Temperature Sensor Process Connection TM4811 TM-050KFEC01 US
Brand: Achievers Automation Limited
SKU: TM4811
Availability: InStock

Brand Name:	IFM
Model Number:	TM4811
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Manufacturer:

IFM

Product No:

TM4811

Protection Class:

III

Application:

Hygienic Systems

Pressure Rating:

25 Bar

Housing:

Tubular

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

hygienic systems IFM Sensor

IFM Temperature sensor TM4811

TM4811

Product Description

IFM Temperature sensor with process connection TM4811 TM-050KFEC01- /US/

Precise temperature measurement in containers, tanks and pipes

For the connection to an evaluation unit

Very short response time for use in processes with fast temperature fluctuations

Hygienic design for the requirements of the food and beverage industry

Variable process connection using adapters

Measuring range	-40...150 °C-40...302 °F
Process connection	Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)
Installation length EL[mm]	50

Application

System	gold-plated contacts
Measuring element	1 x Pt 100; (to DIN EN 60751, class A)
Application	hygienic systems
Media	liquids and gases
Pressure rating	25 bar2.5 MPa
Minimum installation depth[mm]	15
MAWP (for applications according to CRN)[bar]	50

Electrical data

Protection class

III

Measuring/setting range

Probe length L[mm]	50
Measuring range	-40...150 °C-40...302 °F

Accuracy / deviations

Accuracy[K]

± (0,15 K + 0,002 x|t|)

Reaction times

Dynamic response T05 / T09[s]

1 / 3; (according to DIN EN 60751)

Operating conditions

Ambient temperature[°C]	-25...80
Storage temperature[°C]	-40...100
Protection	IP 68; IP 69K

Tests / approvals

Shock resistance	DIN EN 60068-2-2-2750 g (11 ms)
Vibration resistance	DIN EN 60068-2-610 g (10...2000 Hz)
MTTF[years]	22831

Mechanical data

Weight[g]	184
Housing	tubular
Dimensions[mm]	Ø 49.8 / L = 74
Material	stainless steel (1.4404 / 316L)
Materials (wetted parts)	stainless steel (1.4404 / 316L) electropolished
Process connection	Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)
Surface characteristics Ra/Rz of the wetted parts	Ra: < 0.8
Probe diameter[mm]	6
Installation length EL[mm]	50

Remarks

Remarks	cULus - Class 2 source requiredThe values for accuracy apply to flowing water.
Pack quantity	1 pcs.

Electrical connection

Connection

Connector: 1 x M12; coding: A; Contacts: gold-plated
