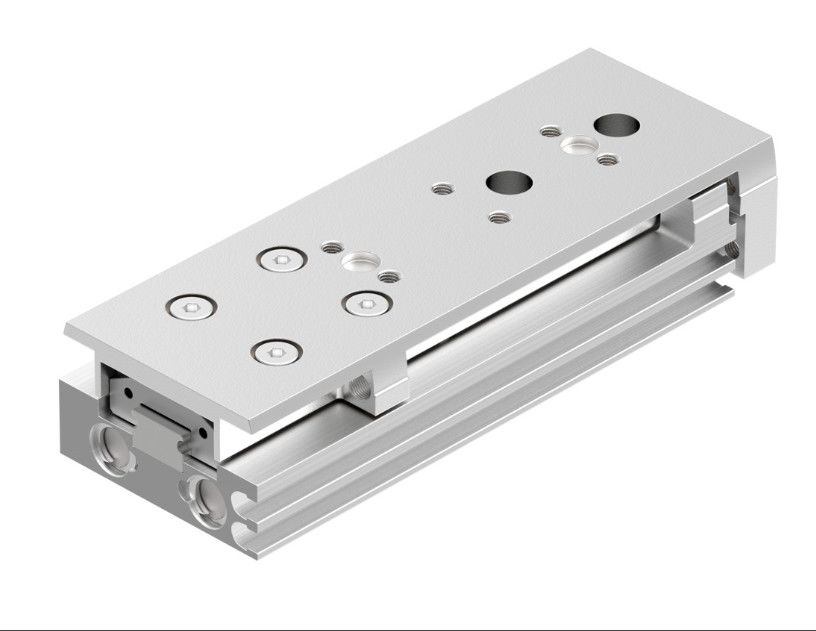

Festo DGST-6-10-E1A Mini Slide

• Stroke

  10 mm

• Piston diameter

  6 mm

• Operating mode, drive unit

  Yoke

• Cushioning

• Elastomer cushioning, double-sided, stroke not adjustable

  Mounting position

• optional

  Guide

• Recirculating ball bearing guide

  Design

• Twin piston

  Yoke

• Piston rod

  Slide

• Position detection

  Via proximity switch

• Symbol

  00991249

• Operating pressure

  0.15 MPa ... 0.8 MPa

• Operating pressure

  1.5 bar ... 8 bar

• Operating pressure

  21.75 psi ... 116 psi

• Max. speed

  0.5 m/s

• Repetition accuracy

  <= 0.3 mm

• Mode of operation

  Double-acting

• Operating medium

  Compressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot medium

  Lubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC

  1 - Low corrosion stress

• LABS (PWIS) conformity

  VDMA24364-B1/B2-L

• Cleanroom class

  Class 6 according to ISO 14644-1

• Ambient temperature

  -10 °C ... 60 °C

• Impact energy in end positions

  0.012 J

• Cushioning length

  0.9 mm

• Max. force Fy

  200 N

• Max. force Fz

  200 N

• Max. moment Mx

  1.1 Nm

• Max. moment My

  0.7 Nm

• Max. moment Mz

  0.7 Nm

• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke

  25 N

• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

  34 N

• Moving mass

  49 g

• Product weight

  90 g

• Type of mounting

  With through-hole

• Pneumatic connection

  M3

• Note on materials

  RoHS-compliant

• Material cover

  Wrought aluminium alloy

• Material seals

  HNBR

• Material guide

  POM

• TPE-E

  High-alloy steel

• Material housing

  Wrought aluminium alloy

• Material piston rod

  High-alloy stainless steel
