Festo Cylinder
Created with Pixso. Festo Mini slide DGSS-6-10-E1A Recirculating ball bearing guide

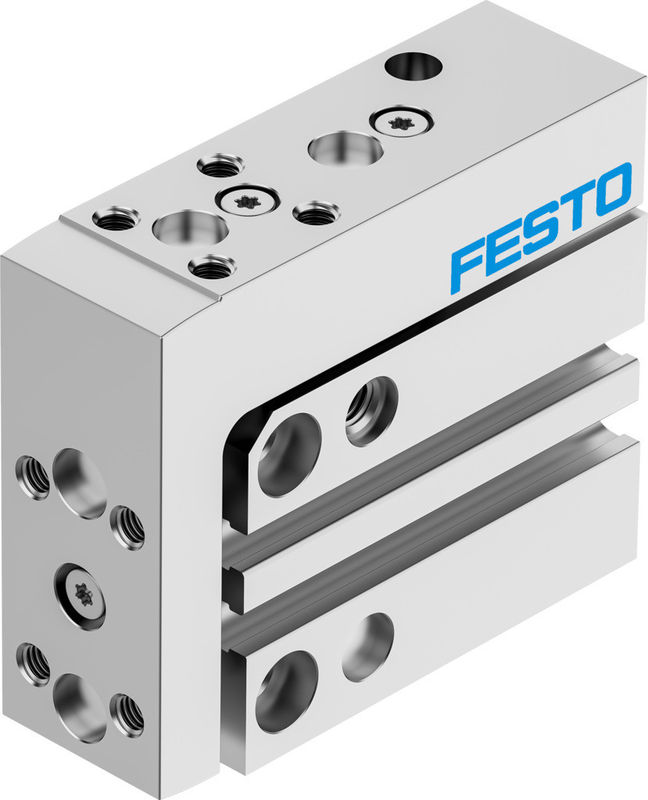

Festo Mini slide DGSS-6-10-E1A Recirculating ball bearing guide

Brand Name: Festo
Model Number: DGSS-6-10-E1A
MOQ: 1
Price: Negotiable
Delivery Time: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Manufacturer:
Festo
Product No:
DGSS-6-10-E1A
Cushioning Length:
0.9 Mm
Max. Force Fy:
296 N
Product Weight:
68 G
Pneumatic Connection:
M3
Note On Materials:
RoHS-compliant
Cover Material:
Wrought Aluminum Alloy
Packaging Details:
carton
Supply Ability:
100pcs per month
Product Description

Festo  Mini slide DGSS-6-10-E1A Recirculating ball bearing guide



  • Stroke

    10 mm

  • Size

    6

  • Piston diameter

    6 mm

  • Cushioning

    Elastomer cushioning, at both ends, stroke not adjustable

  • Mounting position

    Any

  • Guide

    Recirculating ball bearing guide

  • Structural design

    Yoke

  • Piston rod

    Slide

  • Position sensing

    For proximity sensor

  • Symbol

    00991737

  • Operating pressure

    0.15 MPa ... 0.8 MPa

  • Operating pressure

    1.5 bar ... 8 bar

  • Operating pressure

    21.75 psi ... 116 psi

  • Max. speed

    0.5 m/s

  • Repetition accuracy

    <= 0.3 mm

  • Mode of operation

    Double-acting

  • Operating medium

    Compressed air as per ISO 8573-1:2010 [7:4:4]

  • Information on operating and pilot media

    Operation with oil lubrication possible (required for further use)

  • Corrosion resistance class (CRC)

    1 - Low corrosion stress

  • LABS (PWIS) conformity

    VDMA24364-C1-L

  • Suitability for the production of Li-ion batteries

    Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils

  • Cleanroom class

    Class 6 according to ISO 14644-1

  • Ambient temperature

    -10 °C ... 60 °C

  • Impact energy in the end positions

    0.01 J

  • Cushioning length

    0.9 mm

  • Max. force Fy

    296 N

  • Max. force Fz

    296 N

  • Max. torque Mx

    0.8 Nm

  • Max. torque My

    0.7 Nm

  • Max. torque Mz

    0.7 Nm

  • Theoretical force at 6 bar, retracting

    13 N

  • Theoretical force at 6 bar, advancing

    17 N

  • Moving mass

    28 g

  • Product weight

    68 g

  • Type of mounting

    With through-hole

    With internal thread

  • Pneumatic connection

    M3

  • Note on materials

    RoHS-compliant

  • Cover material

    Wrought aluminum alloy

  • Seals material

    NBR

  • PU

    Guide material

  • NBR

    PA

  • High-alloy steel

    Housing material

    Wrought aluminum alloy

  • Piston rod material

    High-alloy stainless steel

    Festo  Mini slide DGSS-6-10-E1A Recirculating ball bearing guide 0
