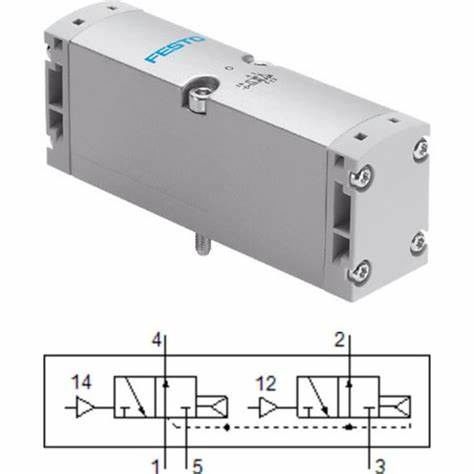

Festo Pneumatic valve VSPA-B-T32C-A2

• Valve function

  2x3/2, closed, monostable

• Actuation type

  Pneumatic

• Width

  18 mm

• Standard nominal flow rate

  400 l/min

• Pneumatic working port

  Sub-base, size 18 mm as per ISO 15407-1

  Connecting plate size 02 according to VDMA 24563

  G1/8

• Operating pressure

  2 bar ... 10 bar

• Structural design

  Piston gate valve

• Reset method

  Pneumatic spring

• Nominal width

  5 mm

• Exhaust air function

  With flow control option

• Sealing principle

  Soft

• Mounting position

  Any

• Conforms to standard

  ISO 15407-1

  VDMA 24563

• Type of control

  Direct

• Flow direction

  Non-reversible

• Symbol

  00991986

• Lap

  Overlap

• Pilot pressure

  2 bar ... 10 bar

• Flow rate of pneumatic valve

  600 l/min

• Flow rate of pneumatic valve on individual sub-base

  450 l/min

• Optimized flow rate of pneumatic valve pneumatically concatenated flow

  400 l/min

• Switching time off

  15 ms

• On switching time

  10 ms

• Explosion prevention and protection

  Zone 2 (ATEX)

  Zone 22 (ATEX)

• Operating medium

  Compressed air as per ISO 8573-1:2010 [7:4:4]

• Information on operating and pilot media

  Operation with oil lubrication possible (required for further use)

• Corrosion resistance class (CRC)

  0 - No corrosion stress

• LABS (PWIS) conformity

  VDMA24364-B1/B2-L

• Temperature of medium

  -10 °C ... 60 °C

• Relative air humidity

  0 - 90 %

• Pilot medium

  Compressed air as per ISO 8573-1:2010 [7:4:4]

• Ambient temperature

  -10 °C ... 60 °C

• Max. tightening torque for valve mounting

  0.9 Nm ... 1.1 Nm

• Product weight

  80 g

• Pilot air port 12

  Sub-base, size 18 mm as per ISO 15407-1

• Pilot air port 14

  Sub-base, size 18 mm as per ISO 15407-1

• Pneumatic connection 1

  Sub-base, size 18 mm as per ISO 15407-1

• Pneumatic connection 2

  Sub-base, size 18 mm as per ISO 15407-1

• Pneumatic connection 3

  Sub-base, size 18 mm as per ISO 15407-1

• Pneumatic connection 4

  Sub-base, size 18 mm as per ISO 15407-1

• Pneumatic connection 5

  Sub-base, size 18 mm as per ISO 15407-1

• Note on materials

  RoHS-compliant

• Seals material

  NBR

• Housing material

  Die-cast aluminum

• Material of screws

  Steel

  Galvanized
