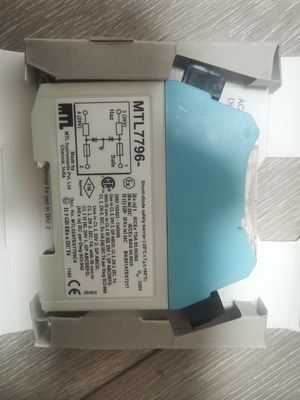

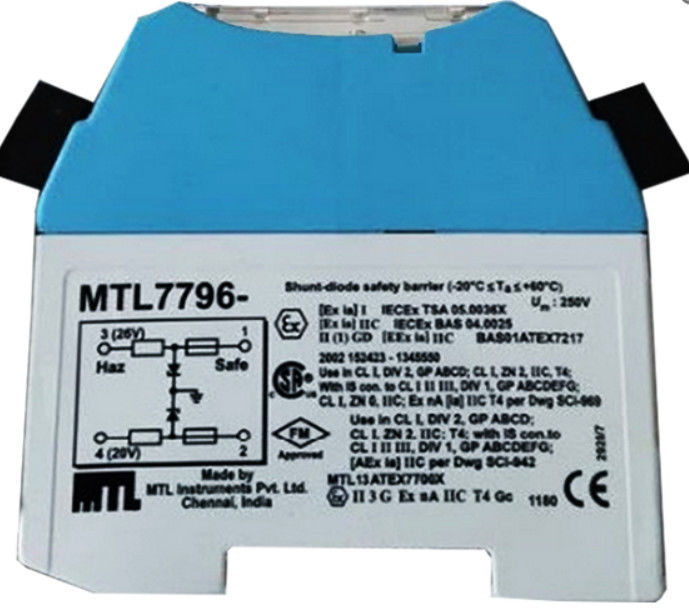

MTL7796 MTL 24V 0.6W Instruments Intrinsically Safe Zener Barriers

Name: MTL7796 MTL 24V 0.6W Instruments Intrinsically Safe Zener Barriers
Brand: Achievers Automation Limited
SKU: MTL7796-
Availability: InStock

Brand Name:	MTL
Model Number:	MTL7796-
MOQ:	1
Price:	Negotiate
Delivery Time:	stock
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

UK/China

Certification:

HART

Manufacturer:

MTL Instruments

Product No:

MTL7796-

Product Type:

Zener Barriers

Power:

24V

Power Dissipation Within Unit:

0.6W At 24V

Weight:

0.014 Kg

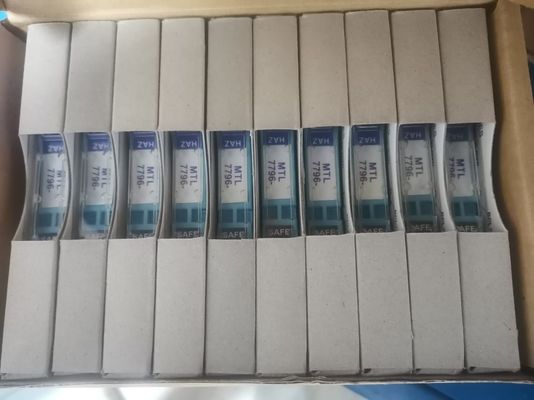

Packaging Details:

carton

Supply Ability:

1000pcs per week

Highlight:

MTL7796

MTL7796 mtl intrinsically safe barriers

24V 0.6W zener barriers

Product Description

MTL7796- MTL Instruments Intrinsically Safe Zener Barriers

Product type : Zener Barriers
Analogue inputs (high level)
2-wire transmitters, 4/20mA, conventional and smart
The recommended barrier for use with 'conventional' and 'smart' 4/20mA transmitters (fed by a 26V regulated supply) is the MTL7787+.
This provides up to 12.9V (14.6V for MTL7787P+) at Vwkg and 20mA for a transmitter and its lines as well as 5V for the typical 250O load.
This application and this barrier is suitable for use with the optional power bus facility.
The MTL7706+ is recommended for applications where an unregulated supply of up to 35V is used. It provides 16.0V for conventional and smart transmitters at 20mA, as well as 5V for a typical 250O load.
With the MTL7706+ terminal 3 is negative with respect to earth, so the connections to terminals 3 and 4 should be reversed.
Vibration probes
The 3-wire transmitters used with vibration monitoring equipment are invariably supplied by a –24V dc power supply – hence the recommended barrier choice is the negatively-polarised MTL7796–.
Weight : 0.014 Kg
