100mA 24V MTL Solenoid Driver Alarm Driver MTL5524 MTL5500 Intrinsically Safe Isolators

Name: 100mA 24V MTL Solenoid Driver Alarm Driver MTL5524 MTL5500 Intrinsically Safe Isolators
Brand: Achievers Automation Limited
SKU: MTL5524
Availability: InStock

Brand Name:	MTL
Model Number:	MTL5524
MOQ:	1
Price:	Negotiate
Delivery Time:	stock
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

UK/China

Certification:

HART

Product No:

MTL5524

Product Type:

Solenoid/ Alarm Driver

Minimum Output Voltage:

13.6V At 48mA

Maximum Output Voltage:

24V From 180Ω

Current Limit:

48mA Minimum

Output Ripple:

< 0.5% Of Maximum Output, Peak-to-peak

Packaging Details:

carton

Supply Ability:

1000pcs per week

Highlight:

100mA mtl solenoid driver

MTL5500

24V Intrinsically Safe Isolators

Product Description

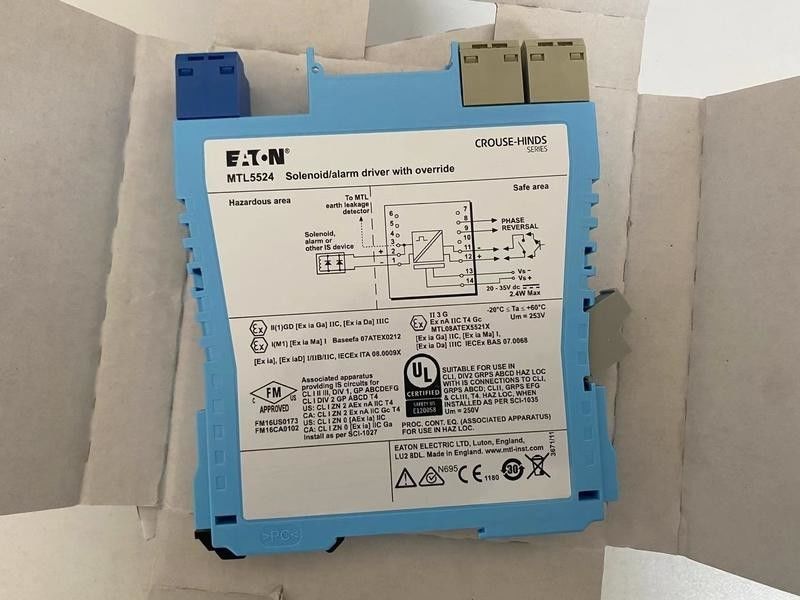

MTL5524 Solenoid Alarm Driver MTL5500 Intrinsically Safe Isolators

The MTLx524 enables an on/off device in a hazardous area to be controlled by a volt-free contact or logic signal in the safe area. It can drive loads such as solenoids, alarms, LEDs and other low power devices that are certified as intrinsically safe or are classified as nonenergy storing simple apparatus.

See also common specification

• Number of channels
One
• Location of load
Zone 0, IIC, T4–6 hazardous area if suitably certified
Div.1, Group A, hazardous location

• Hazardous-area output
Minimum output voltage: 13.6V at 48mA
Maximum output voltage: 24V from 180Ω
Maximum off-state output voltage: 4V from 180Ω
Current limit: 48mA minimum
• Output ripple
< 0.5% of maximum output, peak-to-peak
• Control input
Suitable for switch contacts, an open collector transistor or logic drive
0 = input switch closed, transistor on or <1.4V applied
1 = input switch open, transistor off or >4.5V applied
• Response time
Output within 10% of final value within 100ms
• LED indicators
Green: power indication
Yellow: output status, on when output active
• Maximum current consumption
100mA at 24V dc
• Power dissipation within unit
1.3W with typical solenoid valve, output on
1.9W worst case
• Safety description
U_o=25V I_o=147mA P_o= 0.92W U_m = 253V rms or dc
