VEGASWING 63-Vibrating Level Switch With Tube Extension For Liquids

Name: VEGASWING 63-Vibrating Level Switch With Tube Extension For Liquids
Brand: Achievers Automation Limited
SKU: VEGASWING 63
Availability: InStock

Brand Name:	VEGA
Model Number:	VEGASWING 63
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ATEX

Document:

34141-EN-Chapter-VEGASWING ...1).pdf

Power Input:

12-28 VDC

Gas Detected:

Flammable Gases

Output Signal:

4-20 MA

Display:

LCD

Detection Method:

Catalytic Bead

Certifications:

ATEX, CSA, CE

Sensor Type:

Pellistor

Alarm Type:

Audible And Visual

Supply Ability:

100pcs per month

Highlight:

VEGASWING 63 Vibrating level switch

Vibrating Level Switch With Tube Extension

Liquids Vibrating Level Switch

Product Description

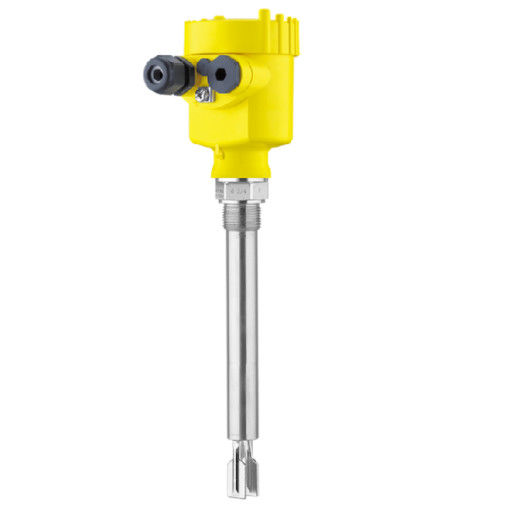

VEGASWING 63-Vibrating level switch with tube extension for liquids

Vega is a renowned company with diverse business scopes. One of the well - known Vegas is the German - based VEGA Grieshaber KG. Established in 1959, it's a global manufacturer of process measurement instruments. With over 1,900 employees worldwide and a presence in more than 80 countries through subsidiaries and sales partners, it offers instruments for level, limit level, and pressure measurement, along with related software. Its products are applied in various industries like chemical, pharmaceutical, and food industries.

The position of the switching point can be up to 6 m away from the installation site. Numerous process fittings, approvals as well as housing and electronics versions.

VEGASWING 63 is used as a universal level switch in all liquids. Independent of the mounting position it detects reliably with millimetre accuracy the level. The instrument can be used in vessels as empty or full detector, as approved overfill protection, dry run protection or pump protection. The position of the switching point is determined through the tube extension. The VEGASWING 63 offers high reliability and security in a wide application range.

Process temperature

-50 ... 250 °C [°C - °F]

Process pressure

-1 ... 64 bar [Bar - kPa - psi]

Version

Standard

Hygienic applications

with gas-tight leadthrough

with tube extension

with temperature adapter

Materials, wetted parts

PFA

316L

Alloy C22 (2.4602)

Alloy 400 (2.4360)

ECTFE

Enamel

Threaded connection

≥ G¾, ≥ ¾ NPT

Flange connection

≥ DN25, ≥ 1"

Hygenic fittings

Clamp ≥ 1" - DIN32676, ISO2852

Slotted nut ≥ 1½", ≥ DN40 - DIN 11851

Varivent ≥ DN25

hygienic fitting F40 with compression nut

SMS 1145 DN51

SMS DN38

Hygienic fittings ≥ DN25 - DIN11864-1-A

Hygienic flange connection DIN11864-2-A; DN60(ISO)ø60,3

SMS socket piece DN38 PN6

Seal material

no media contact

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP67

IP66/IP68 (1 bar)

IP65

Output

Relay (DPDT)

Contactless electronic switch

Transistor (NPN/PNP)

Two-wire

NAMUR

Ambient temperature

-40 ... 70 °C

VEGASWING 63-Vibrating Level Switch With Tube Extension For Liquids 2

Achievers Automation Limited is a well-established player in the field of industrial automation, boasting a rich and extensive experience of more than 12 years.

Over these years, the company has dedicated itself to dealing with a comprehensive and complete range of industrial automation components and instruments. With an unwavering commitment to excellence, the team at Achievers always goes the extra mile, striving their absolute best to provide top-notch quality goods and highly efficient, timely services to our esteemed and valued customers.xnx transmitter honeywell price. These customers hail from over 45 countries across the globe, spanning different continents and diverse industrial landscapes.

VEGASWING 63-Vibrating Level Switch With Tube Extension For Liquids 3

FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
