VEGABAR 82-Pressure transmitter with ceramic measuring cell

Name: VEGABAR 82-Pressure transmitter with ceramic measuring cell
Brand: Achievers Automation Limited
SKU: VEGABAR 82
Availability: InStock

Brand Name:	VEGA
Model Number:	VEGABAR 82
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ATEX

Document:

34137-EN-Chapter-VEGAPULS.pdf

Communication Protocol:

Modbus RTU

Sensor Life:

3 To 5 Years Typical

Calibration:

Automatic Or Manual

Operating Temperature:

-40°C To 60°C

Detection Method:

Catalytic Bead, Infrared, Electrochemical, Photoionization

Warranty:

2 Years

Display:

LCD With Backlight

Supply Ability:

100pcs per month

Highlight:

VEGABAR 82 Pressure Transmitter

Ceramic Measuring Cell Pressure Transmitter

VEGABAR 82

Product Description

VEGABAR 82-Pressure transmitter with ceramic measuring cell

Vega is a renowned company with diverse business scopes. One of the well - known Vegas is the German - based VEGA Grieshaber KG. Established in 1959, it's a global manufacturer of process measurement instruments. With over 1,900 employees worldwide and a presence in more than 80 countries through subsidiaries and sales partners, it offers instruments for level, limit level, and pressure measurement, along with related software. Its products are applied in various industries like chemical, pharmaceutical, and food industries.

The VEGABAR 82 pressure transmitter can be used universally for the measurement of gases, vapours and liquids. Substances such as sand can be handled easily thanks to the abrasion-resistant ceramic measuring cell. The VEGABAR 82 offers maximum reliability. The transmitter can be used in all industries. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.

Monitoring of feed pressure in sewage pipelines
Overload-resistant level and gauge pressure measurement in pressurized batch vessels
Level measurement of paper pulp level in bleaching towers, to protect against dry-run damage to the discharge pumps
Monitoring of negative pressure in distillation columns (down to absolute vacuum)

Measuring range - Distance

- [Meter - Foot]

Measuring range - Pressure

-1 ... 100 bar [Bar - kPa - psi]

Process temperature

-40 ... 150 °C [°C - °F]

Process pressure

-1 ... 100 bar [Bar - kPa - psi]

Accuracy

0.05%

Materials, wetted parts

PVDF

316L

Alloy C22 (2.4602)

1.4057

1.441

Alloy C276 (2.4819)

Duplex (1.4462)

Titanium Grade 2 (3.7035)

Threaded connection

≥ G¼, ≥ ¼ NPT

Flange connection

≥ DN15, ≥ ½"

Seal material

EPDM

FKM

FFKM

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP68 (0,2 bar)

IP66/IP67

IP66/IP68 (1 bar)

IP66/IP68 (25 bar)

IP69

Output

Profibus PA

Foundation Fieldbus

4 … 20 mA

Two-wire: 4 … 20 mA/HART

Modbus

Secondary electronics for electronic differential pressure

Ambient temperature

-40 ... 80 °C

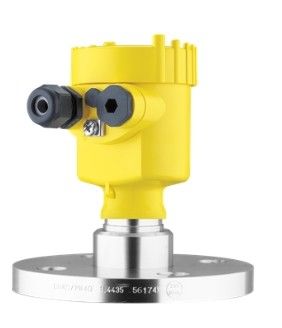

VEGABAR 82-Pressure transmitter with ceramic measuring cell 1

Achievers Automation Limited is a well-established player in the field of industrial automation, boasting a rich and extensive experience of more than 12 years.

Over these years, the company has dedicated itself to dealing with a comprehensive and complete range of industrial automation components and instruments. With an unwavering commitment to excellence, the team at Achievers always goes the extra mile, striving their absolute best to provide top-notch quality goods and highly efficient, timely services to our esteemed and valued customers.xnx transmitter honeywell price. These customers hail from over 45 countries across the globe, spanning different continents and diverse industrial landscapes.

VEGABAR 82-Pressure transmitter with ceramic measuring cell 2

FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
