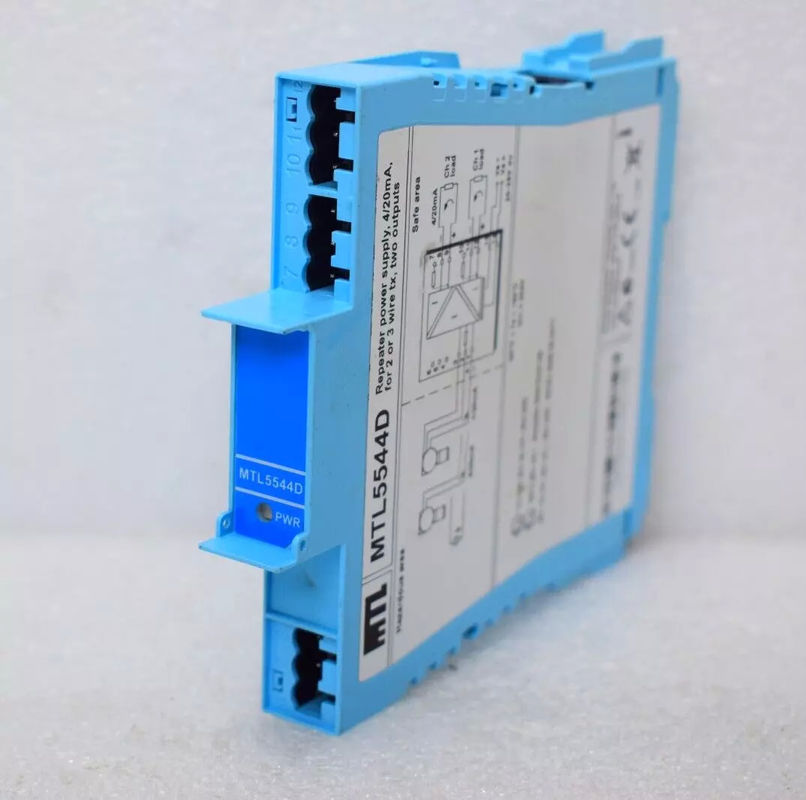

Eaton MTL5544D REPEATER POWER SUPPLY

Name: Eaton MTL5544D REPEATER POWER SUPPLY
Brand: Achievers Automation Limited
SKU: MTL-5544D
Availability: InStock

Brand Name:	EATON
Model Number:	MTL-5544D
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ATEX

Document:

MTLx544D.pdf

Temperature Drift:

< 0.8µA/°C

Response Time:

Settles To Within 10% Of Final Value Within 50µs

Communications Supported:

HART (terminals 1 & 2, Output Ch 1 Only)

LED Indicato:

Maximum Current Consumption (with 20mA Signals)

Power Dissipation Within Unit (with 20mA Signals):

1.4W @ 24V Dc

Safety Description:

Terminals 2 To 1 And 3: Uo=28V Io=93mA Po=651mW Um = 253V Rms Or Dc Terminals 1 To 3: Simple Apparatus ≤1.5V, ≤0.1A And ≤25mW; Can Be Connected Without Further Certification Into Any IS Loop With An Open-circuit Voltage <28V

Packaging Details:

carton

Supply Ability:

100pcs per month

Product Description

Eaton MTL MTL5544 REPEATER POWER SUPPLY

As a global power management company, we help our customers solve their greatest power challenges through our industry leading electrical, aerospace, hydraulic and vehicle products and services. For more than 100 years, our teams have helped people work more safely, be more energy efficient and live more sustainably.

The MTL5544D provides a fully-floating dc supply for energising a conventional 2- or 3-wire 4/20mA transmitter located in a hazardous area, and repeats the current in other circuits to drive two safe-area loads. For HART 2-wire transmitters, the unit allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current. Separately powered current sources, such as 4-wire transmitters, can be connected but will not support HART
communication.

Manufactuer/Brand:	Eaton	Manufacturer's Part Number:	MTL5544D
Location of transmitter	Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location	Number of channels	one
Safe-area output	Signal range: 4 to 20mA Under/over-range: 0 to 24mA Safe-area load resistance @ 24mA: 0 to 360Ω @ 20mA: 0 to 450Ω Safe-area circuit output resistance: > 1MΩ	Safe-area circuit ripple	< 50µA peak-to-peak
Hazardous-area input	Signal range: 0 to 24mA (including over-range) Transmitter voltage: 16.5V at 20mA	Transfer accuracy at 20°C	Better than 15µA

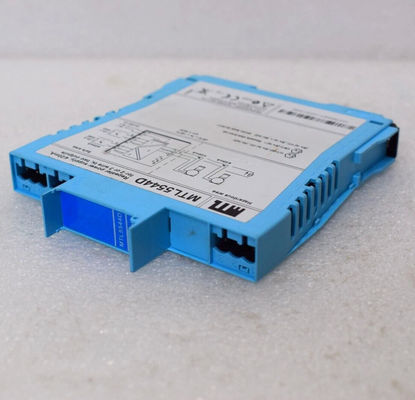

Eaton MTL5544D REPEATER POWER SUPPLY 1

https://www.achieversinstruments.com/ and Emerson Hand Communicator TREXCHPNAWS1S, rosemount 0068

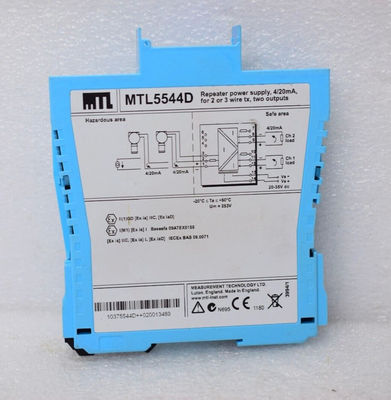

Eaton MTL5544D REPEATER POWER SUPPLY 3

Achievers Automation Limited is a well-established player in the field of industrial automation, boasting a rich and extensive experience of more than 12 years.

Over these years, the company has dedicated itself to dealing with a comprehensive and complete range of industrial automation components and instruments. With an unwavering commitment to excellence, the team at Achievers always goes the extra mile, striving their absolute best to provide top-notch quality goods and highly efficient, timely services to our esteemed and valued customers.

These customers hail from over 45 countries across the globe, spanning different continents and diverse industrial landscapes.

Eaton MTL5544D REPEATER POWER SUPPLY 4

FAQ of Achievers

Q:Are preferential prices available?

A: We provide customers with competitive product prices and the biggest discounts through a long-term cooperative supply chain system.

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT,UPS with good price.

Q:What is the warranty of goods?

A: One-year Warranty.

Q:Which are the best-selling products?

A: Many brands of products have been supplied to customers from all over the world for a long time. For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W,Emerson Hand Communicator TREXCHPNAWS1S,xnx transmitter honeywell
