| Brand Name: | p&f |
| Model Number: | KCD2-SCD-Ex1 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |

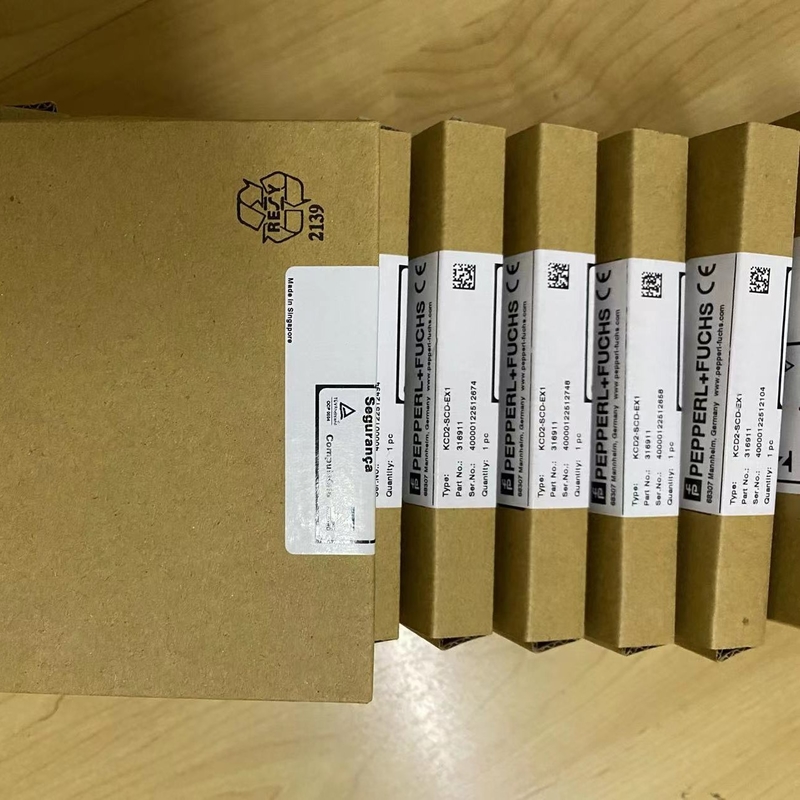

The Pepperl+Fuchs KCD2-SCD-Ex1 is a single-channel isolating barrier designed for safe and reliable signal transmission in hazardous areas. It protects control systems by electrically isolating 4-20 mA field devices located in explosive atmospheres. This module offers high measurement accuracy and is certified for use in functional safety applications up to SIL 2.
| Property | Value |
| Product Type | Single-Channel Isolating Barrier |
| Function | Signal Isolation & Intrinsic Safety (Barrier) |
| Input Signal | 4...20 mA |
| Output Signal | 4...20 mA |
| Number of Channels | 1 |
| Power Supply | 20...30 V DC |
| Property | Value |
| Accuracy | ≤ ± 0.1 % of full scale value |
| Load Capacity (Output) | ≤ 650 Ω |
| Response Time | < 50 ms |
| Operating Temperature | -20 °C ... +60 °C |
| Reference Conditions | 23 °C, 24 V DC |
| Repeatability | ≤ ± 0.05 % of full scale value |
| Property | Value |
| Safety Integrity Level (SIL) | SIL 2 (IEC 61508) |
| Explosion Protection [Input] | Ex ia IIC / Ex ia IIIC |
| Explosion Protection [Output] | - |
| Housing Material | Plastic (PBT) |
| Connection Type | Screw Clamp |
| Protection Rating | IP 20 |
