MTL5561 DIN Rail Isolating IS Interface Unit Two, fully floating, loop powered

Name: MTL5561 DIN Rail Isolating IS Interface Unit Two, fully floating, loop powered
Brand: Achievers Automation Limited
SKU: MTL5561
Availability: InStock

Brand Name:	MTL
Model Number:	MTL5561
MOQ:	1
Price:	Negotiate
Delivery Time:	stock
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

UK/China

Certification:

HART

Manufacturer:

MTL Instruments

Product No:

MTL5561

Input Voltage:

6 To 30V Dc

Current Range:

1 To 40mA, Nominal

Shipping Weight:

2 Kg

Quality Guarantee:

1 Year

Packaging Details:

carton

Supply Ability:

1000pcs per week

Product Description

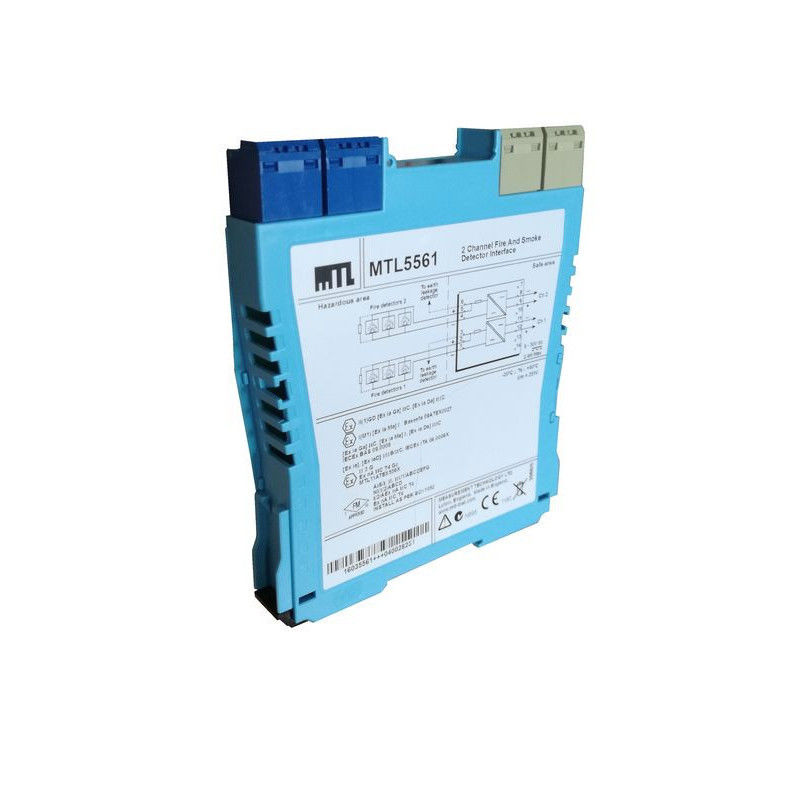

MTL5561 DIN Rail Isolating IS Interface Unit

The MTL5561 is a loop-powered 2–channel interface for use with conventional fire and smoke detectors located in hazardous areas.

Product type : Fire And Smoke Detector Interface

Number of channels : Two, fully floating, loop powered

Location of fire and smoke detectors : Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A, hazardous area

Input voltage : 6 to 30V dc

Current range : 1 to 40mA, nominal

Quiescent safe–area current at 20°C : (hazardous–area terminals open circuit) < 400µA at Vin = 24V per channel

Integral input polarity protection : Input circuit protected against reverse polarity

Minimum output voltage Vout at 20°C : For Vin = 25V: Vout = Vin – (0.38 x current in mA) – 2V, For Vin > 25V: Vout = 22.5V – (0.35 x current in mA)

Maximum output voltage : 28V from 300?

Transfer accuracy at 20°C : Better than 400µA

Temperature drift : < 4µA/°C ( 0°C to 60°C), < 15µA/°C (–20°C to 0°C)

Response time to step input Settles to within 5% of final value within 1.5ms

Power dissipation within unit : 0.7W maximum at 24V with 40mA signal (each channel) 0.9W maximum at 30V with 40mA signal (each channel)
Safety description for each channel Uo=28V Io=93mA Po=0.65W Um = 253V rms or dc
Shipping weight : 2 Kg
