1794-OB32P is an Allen-Bradley Flex I/O electronically protected discrete output module

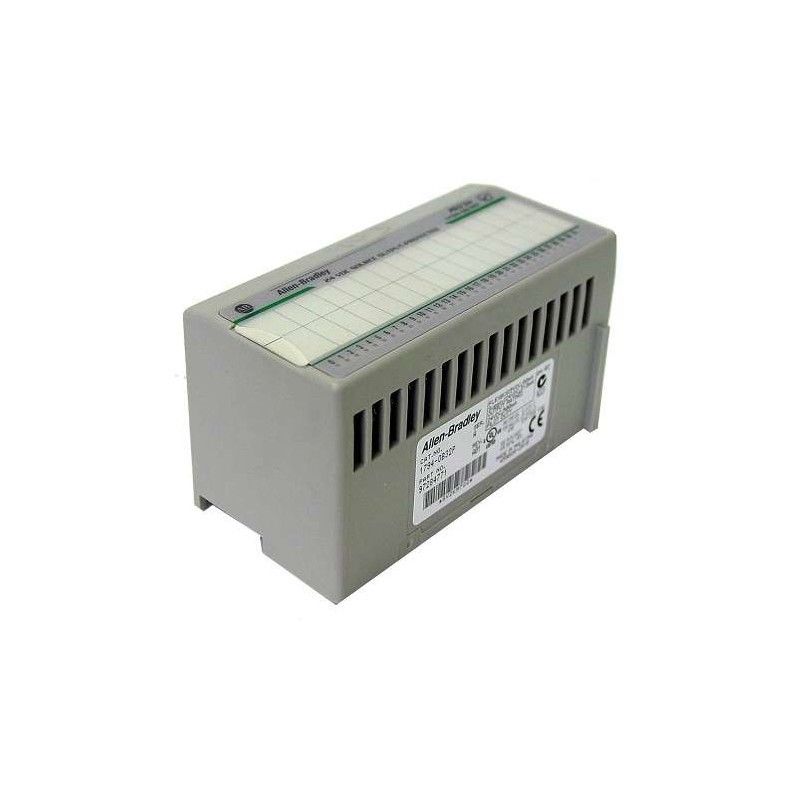

          1794-OB32P is an Allen-Bradley Flex I/O electronically protected discrete output module. This module comes with individual channel protection, having thirty-two (32) 24 Volt DC sourcing output channels. It is compatible for use with the 1794-TB32 and 1794-TB32S terminal base units. It has an output current rating of 14.0 Amperes per module, with 6 Amperes total for channels 0...15 and 8 Amperes total for channels 16-31.

Technical specifications

Manufacturer                        Rockwell Automation

Output Current Rating         14.0 A max per module (6 A total for channels 0...15; 8 A total for channels 16...31)

Part Number/Catalog No.    1794-OB32P

Brand                                    Allen-Bradley

Product Description              Flex IO DC Output Module

Number of Outputs              Thirty-Two (32) Channels

Output circuit type                Sourcing

Terminal base                        1794-TB32 and 1794-TB32S

ON state Voltage, min           10VDC

ON state Voltage, max          31.2VDC

ON state Voltage, nom         24VDC

Enclosure                               Open-type

Mounting                              DIN Rail

Wire Size                               Determined by installed terminal base

Operating Temperature        0 to 55 C (32 to 131 F)

Storage Temperature            -40 to 85 C (-40 to 185 F)

Vibration                               5g @ 10 to 500 Hz

Operating Shock                   30 g

Product Type                         Flex I/O Digital DC Output Module

Outputs                                 32 Sourcing Current

On-state Voltage nom          24V DC

On-state Current max           500mA per Channel

On-state Voltage Drop max          0.5V DC

Off-state Leakage Current max     0.5mA

Isolation Voltage                           50V Continuous
