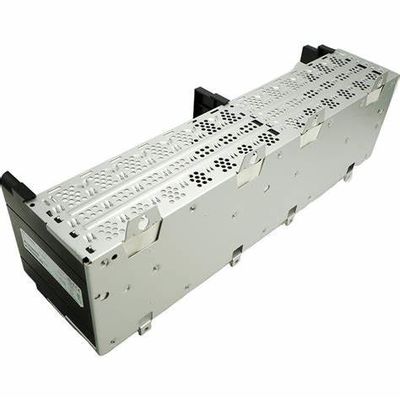

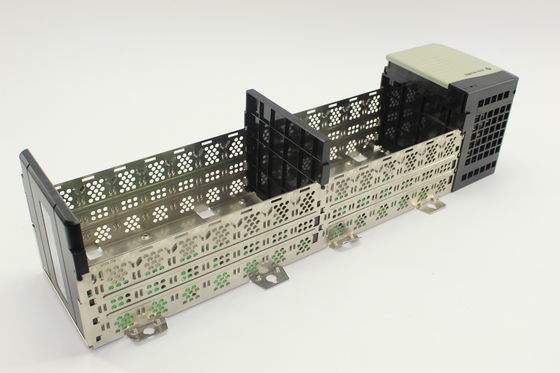

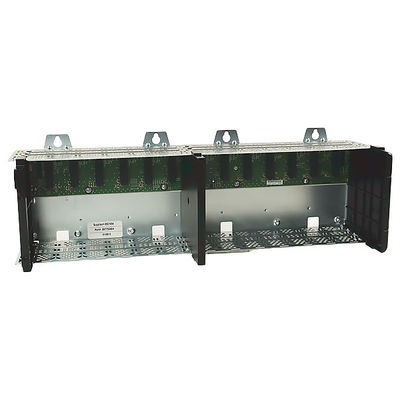

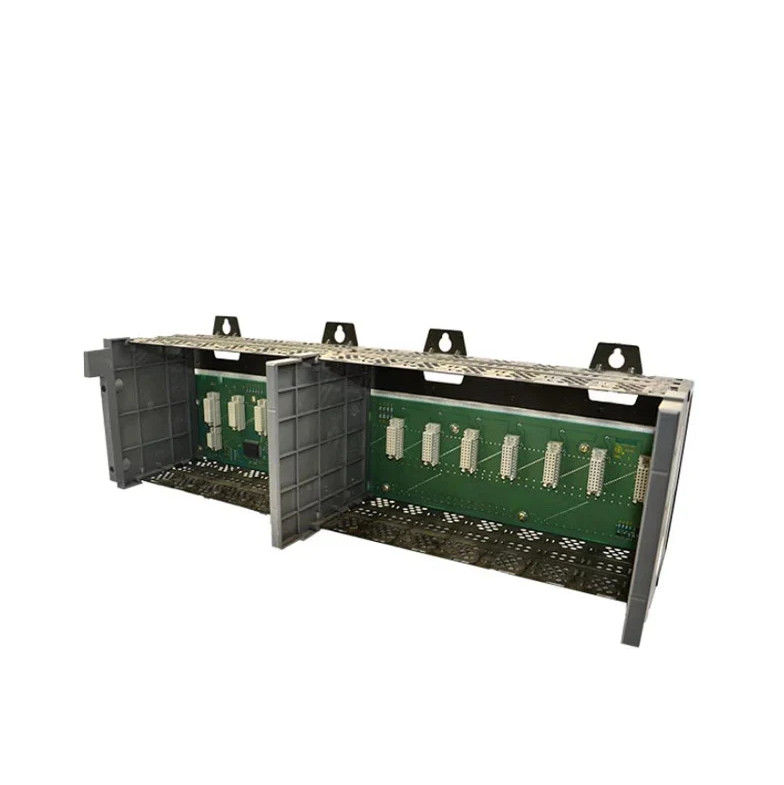

Allen-Bradley 1756-A13 is ControlLogix chassis

          Allen-Bradley 1756-A13 is ControlLogix chassis. This hardware provides Thirteen (13) module mounting slots, hosting the ControlLogix modules and enables backplane connectivity. This chassis has a maximum backplane current of 1.5 A @ 1.2VDC; 4A/4A @ 3.3 VDC; 15 A/6 A @ 15 A/6 A and 2.8 A/2.8 A @ 24VDC. It supports horizontal mounting with minimum cabinet size requirement

Technical specifications

Manufacturer                            Rockwell Automation

Mounting                                  Panel Mount

Module Type                             Chassis

Series                                        ControlLogix

Part Number/Catalog No         1756-A13

Brand                                         Allen-Bradley

No. of slots                                Thirteen (13) slots

Backplane Current @ 1.2VDC   1.5 A

Backplane Current @ 3.3VDC   4A/4 A

Backplane Current @ 5.1VDC   15 A/6 A

Backplane Current @ 24VDC    2.8 A/2.8 A

Orientation                                Horizontal

No. of mounting tabs                Eight (8)

Operating Temperature, Series B    0°C to +60°C (+32°F to +140°F)

Operating Temperature, Series C    -25…+60 °C (-13…+140 °F)

Storage Temperature                      -40°C to +85°C (-40°F to +185°F)

Relative Humidity                             5 to 95% (without condensation)

Wire size                                           Functional Earth Ground - 8.3 mm2 (8 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater Protective Earth Ground - 2.1 mm2 (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater

Slots    13

Power Dissipation (Max)                  5.4 Watts

Dimensions                                      24 x 30 x 8 inches

Weight                                             4.2 pounds (1.9 kilograms)

Enclosure                                         Open
