MTL4546Y MTL Instruments Isolating Driver

Name: MTL4546Y MTL Instruments Isolating Driver
Brand: Achievers Automation Limited
SKU: MTL4546Y
Availability: InStock

Brand Name:	MTL
Model Number:	MTL4546Y
MOQ:	1
Price:	Negotiate
Delivery Time:	stock
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

UK/China

Certification:

HART

Manufacturer:

MTL Instruments

Product No:

MTL4546Y

Mounting Method:

Other

IP-rating:

IP20

Shipping Weight:

1kg

Quality Guarantee:

1 Year

Packaging Details:

carton

Supply Ability:

1000pcs per week

Product Description

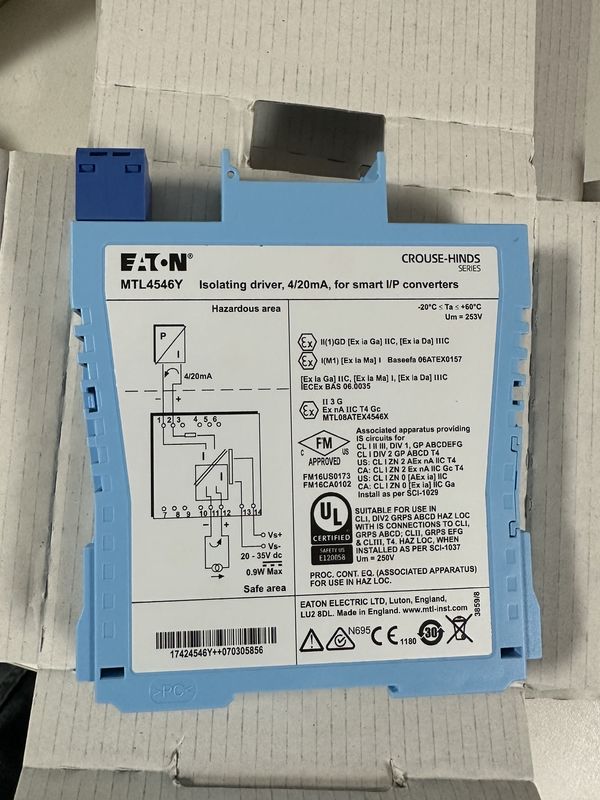

MTL4546Y MTL Instruments Isolating Driver

MTL4546Y Isolating Driver, for 4–20mA HART® valve positioners with line fault detection, MTL 4500 Intrinsically Safe Isolators. The MTL4546 accepts a 4/20mA floating signal from a safe-area controller to drive a current/pressure converter (or any other load up to 800Ω) in a hazardous area. For HART valve positioners, the module also permits bi-directional transmission of digital communication signals. Process controllers with a readback facility can detect open or short circuits in the field wiring: if these occur, the current taken into the terminals drops to a preset level. The MTL4546C and the MTL4546Y are very similar to the MTLx546 except that they provide open circuit detection only (i.e. no short-circuit detection).

Depth 15.8 mm

Galvanic separation between input and output yes

Height 121.8 mm

IP-rating IP20

Mounting method Other

Number of channels 1

Number of input ranges 4 mA ... 20 mA 1

Number of output ranges 0 mA ... 20 mA 0

Number of output ranges 0 V ... 10 V 0

Number of output ranges 4 mA ... 20 mA 1

Operation temperature -20...60 °C

Rated supply voltage at DC 24...24 V

Type of electric plug connection Screw connection

Width 104.8 mm

MTL4546Y MTL Instruments Isolating Driver 0
