MTL4511 MTL Instruments Switch/Proximity Detector Interface 1-channel, with line fault detection

Name: MTL4511 MTL Instruments Switch/Proximity Detector Interface 1-channel, with line fault detection
Brand: Achievers Automation Limited
SKU: MTL4511
Availability: InStock

Brand Name:	MTL
Model Number:	MTL4511
MOQ:	1
Price:	Negotiate
Delivery Time:	stock
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

UK/China

Certification:

HART

Manufacturer:

MTL Instruments

Product No:

MTL4511

Response Time:

10ms Maximum

Voltage Applied To Sensor:

7 To 9V Dc From 1kO ±10%

Shipping Weight:

1kg

Quality Guarantee:

1 Year

Packaging Details:

carton

Supply Ability:

1000pcs per week

Product Description

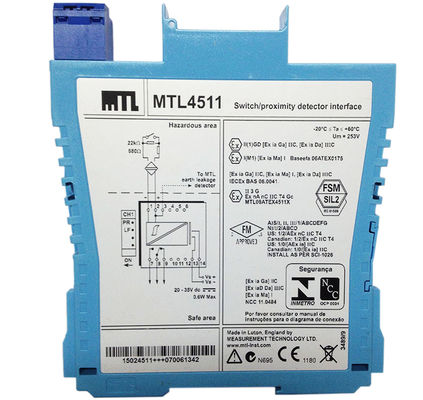

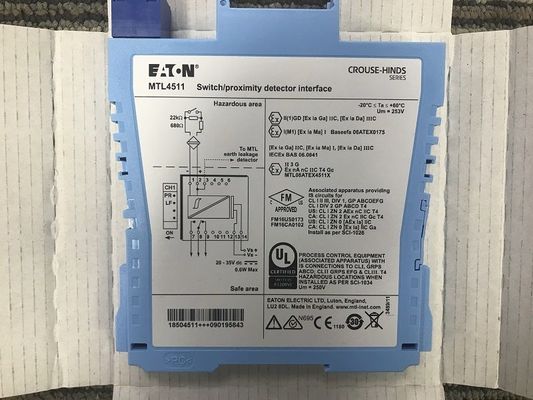

MTL4511 | MTL Instruments | Switch/Proximity Detector Interface 1-channel, with line fault detection

The MTLx511 enables a safe-area load to be controlled by a switch or proximity detector located in a hazardous-area. When selected, open MTL4511 1-channel safety barriers PROXIMITY DETECTOR INTERFACE or short circuit conditions in the field wiring are detected by the linefault-detect (LFD) facility and also indicated on the top of the module.Phase reversal for the channel is selected by a switch on the side of the module and output is provided by changeover relay contacts

Product type : Switch/Proximity Detector Interface 1-channel, with line fault detection

Response time: 10ms maximum

Contact rating(Safe Area):10W, 0.5A,35V dc

Contact rating(Zone 2):10W, 0.5A,35V dc

Response time : 10ms maximum

Contact rating(Safe Area) :10W, 0.5A,35V dc

Contact rating(Zone 2) :10W, 0.5A,35V dcNumber of channels : One

Location of switches : Zone 0, IIC, T6 hazardous area,Div. 1, Group A hazardous location

Input/output characteristics : Normal phase, Outputs closed if input > 2.1mA (< 2kO in input circuit), Outputs open if input < 1.2mA (> 10kO in input circuit), Hysteresis: 200µA (650O) nominal
