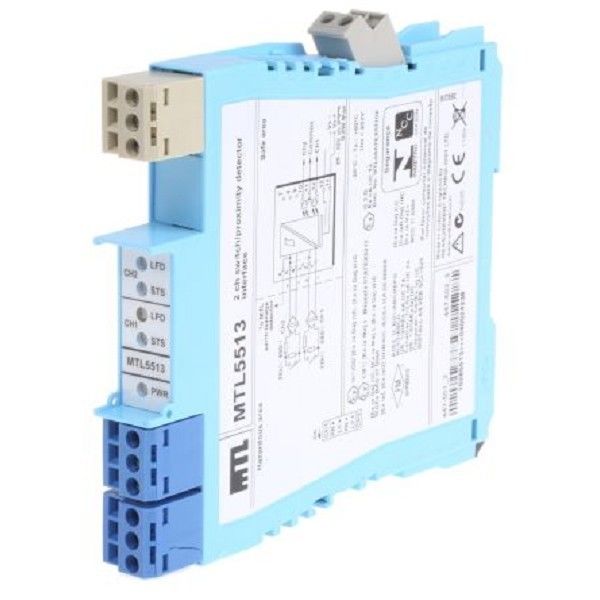

MTL5513 MTL Instruments Switch/Proximity Detector Interface

Name: MTL5513 MTL Instruments Switch/Proximity Detector Interface
Brand: Achievers Automation Limited
SKU: MTL5513
Availability: InStock

Brand Name:	MTL
Model Number:	MTL5513
MOQ:	1
Price:	Negotiate
Delivery Time:	stock
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

UK/China

Certification:

HART

Manufacturer:

MTL Instruments

Product No:

MTL5513

Max. Off-state Voltage:

± 35V

Max. On-state Current:

± 50mA

Shipping Weight:

1kg

Quality Guarantee:

1 Year

Packaging Details:

carton

Supply Ability:

1000pcs per week

Product Description

MTL5513 MTL Instruments Switch/Proximity Detector Interfa

MTL5513 enables two solid-state outputs in the safe area to be controlled by two switches or proximity detectors located in the hazardous area. The Ch1/Ch2 output transistors share a common terminal and can switch +ve or -ve polarity signals. Independent output phase reversal and line fault detection are enabled via switches for each output. LFD indication is provided on the top of the module.

Specification

Barrier Type : Galvanic

Number Of Channels : 2

Supply Voltage : 20 / 35 V Dc

Safety Voltage : Maximum 10.5 V

Safety Current Maximum : 14ma

Signal Type : Solid State Output, Switch / Namur Digital Output

Minimum Operating Temperature : -20°C

Maximum Operating Temperature : +60°C

Hazardous Area Certification : Atex
