MTL5044 MTL Instruments Repeater Power Supply

Name: MTL5044 MTL Instruments Repeater Power Supply
Brand: Achievers Automation Limited
SKU: MTL5044
Availability: InStock

Brand Name:	MTL
Model Number:	MTL5044
MOQ:	1
Price:	Negotiate
Delivery Time:	stock
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

UK/China

Certification:

HART

Manufacturer:

MTL Instruments

Product No:

MTL5044

Signal Range:

4 To 20mA

Shipping Weight:

1kg

Quality Guarantee:

1 Year

Packaging Details:

carton

Supply Ability:

1000pcs per week

Product Description

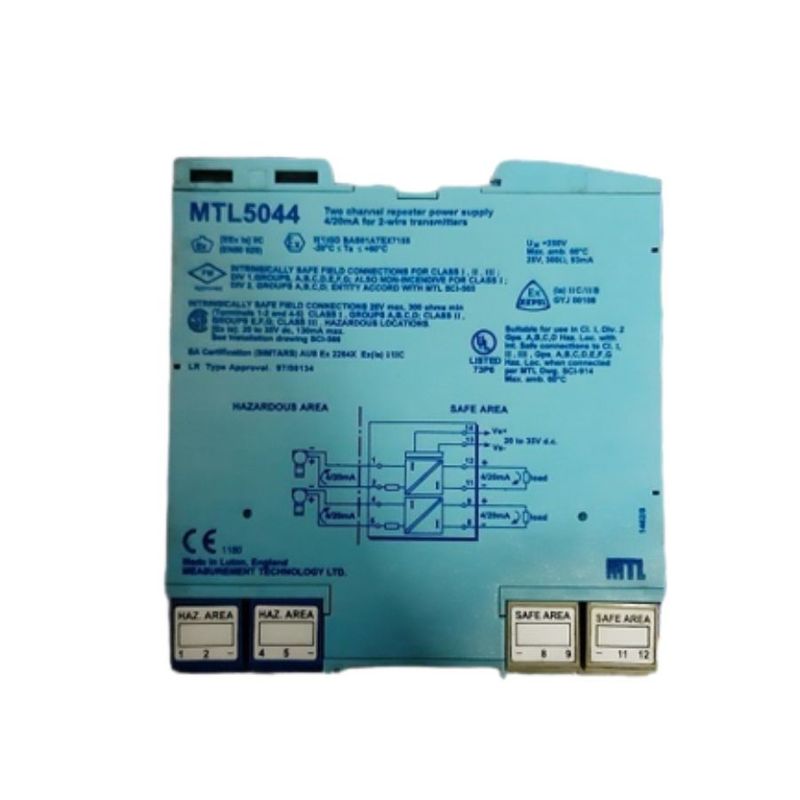

MTL5044 MTL Instruments Repeater Power Supply

MTL5044 provides a fully-floating dc supply for energising two conventional 2-wire 4/20mA transmitters which are located in a hazardous area, and repeats the current in two floating circuits to drive two safe-area loads.

Specification

Product Type : Repeater Power Supply

Number of Channels : 2

Location of Transmitters : Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location

Response Time : Settles to within 10% of final value within 250µs

LED Indicator : Green : power indication

Supply Voltage : 20 to 35V dc

Maximum current consumption (with two 20mA signals) :

110mA at 24V

130mA at 20V

80mA at 35V

Maximum power dissipation within unit (with two 20mA signals) :

1.5W at 24V

Safety Description : 28V, 300Ω, 93mA; Um = 250V rms or dc

Shipping Weight: 1.5 Kg
