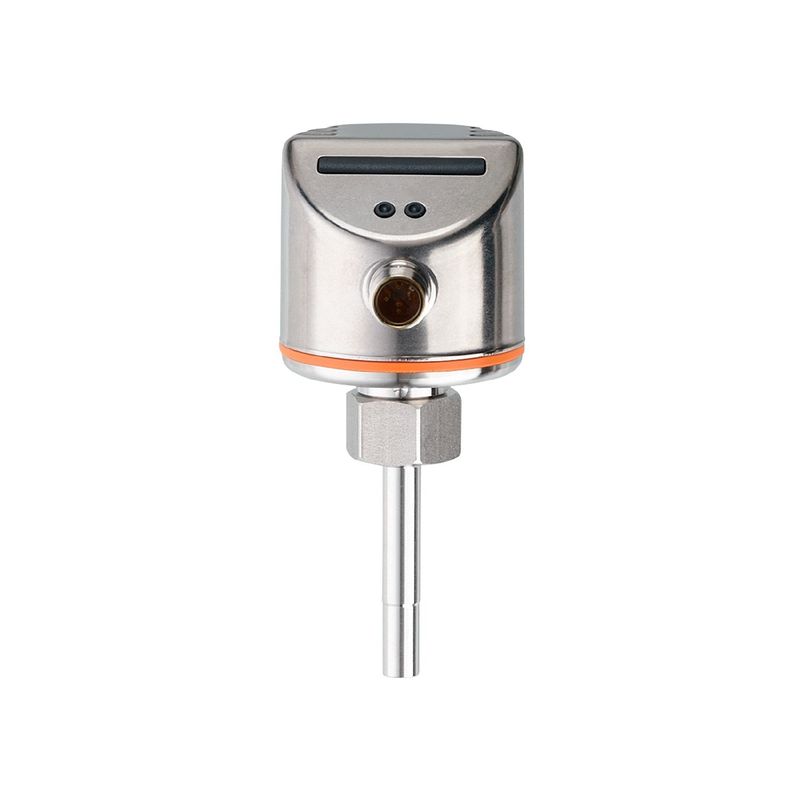

IFM Flow monitor SI5000 SID10ABBFPKG/US-100

Name: IFM Flow monitor SI5000 SID10ABBFPKG/US-100
Brand: Achievers Automation Limited
SKU: SI5000
Availability: InStock

Brand Name:	IFM
Model Number:	SI5000
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Manufacturer:

IFM

Product No:

SI5000

Housing:

Tubular

Protection:

IP 67

Packaging Details:

carton

Supply Ability:

100pcs per month

Product Description

IFM Flow monitor SI5000 SID10ABBFPKG/US-100

Reliable monitoring of liquids and gases in pipes

Variable process connection using adapters

Easy setting of the switch points for quick set-up

Robust stainless steel housing for use in harsh industrial environments

LED bar graph for indication of switch point and flow

Adjustment of the switch point

pushbuttons

Operating conditions

Ambient temperature[°C]	-25...80
Storage temperature[°C]	-25...100
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD4 kV CD / 8 kV ADEN 61000-4-3 HF radiated10 V/mEN 61000-4-4 Burst2 kVEN 61000-4-6 HF conducted10 V
Shock resistance	DIN IEC 68-2-2750 g (11 ms)
Vibration resistance	DIN EN 60068-2-620 g (55...2000 Hz)
MTTF[years]	298

Mechanical data

Weight[g]	246
Housing	tubular
Dimensions[mm]	Ø 50 / L = 113
Material	stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connection	threaded connection M18 x 1,5 Internal thread
Probe diameter[mm]	8.2
Installation length EL[mm]	45

Displays / operating elements

Display

Function10 x LED, three-color

Remarks

Pack quantity

1 pcs.
