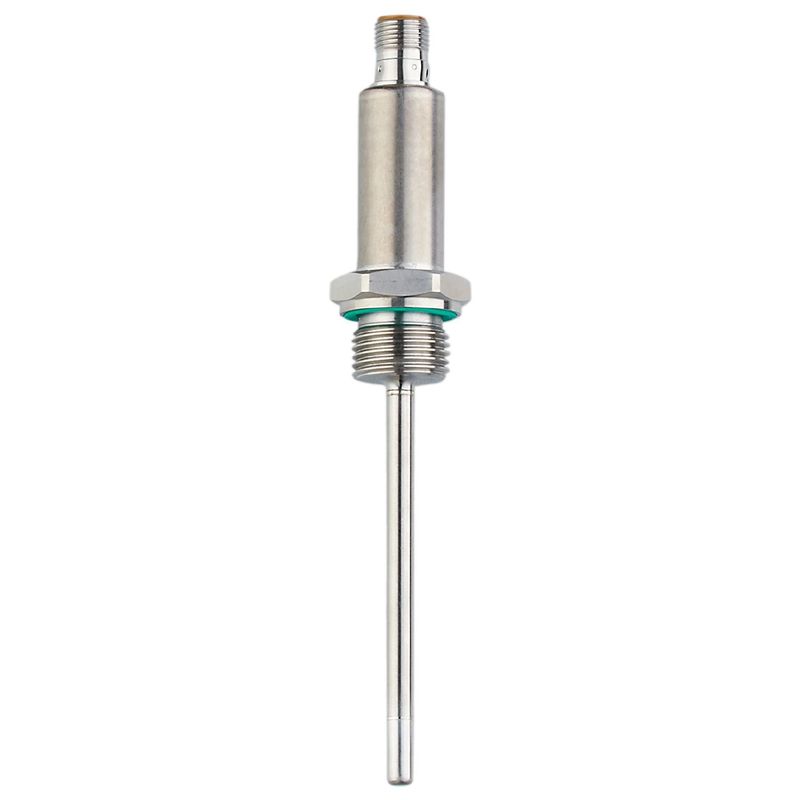

IFM Temperature transmitter TA2435 TA-100CLER12-A-ZVG/US

IFM Temperature transmitter TA2435 TA-100CLER12-A-ZVG/US

IFM Temperature transmitter TA2435 TA-100CLER12-A-ZVG/US

Brand Name:	IFM
Model Number:	TA2435
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Manufacturer:

IFM

Product No:

TA2435

UL Approval:

UL Approval Number

Transmission Type:

COM2 (38,4 KBaud)

Packaging Details:

carton

Supply Ability:

100pcs per month

Product Description

IFM Temperature transmitter TA2435 TA-100CLER12-A-ZVG/US

High precision across the entire temperature measurement range

Fast response dynamics and very short power-on delay time

Robust stainless steel housing with high pressure resistance

High protection rating for the requirements of harsh industrial environments

Number of inputs and outputs	Number of analog outputs: 1
Measuring range[°C]	-50...150
Communication interface	IO-Link
Process connection	threaded connection G 1/2 external thread
Installation length EL[mm]	100

Application

System	gold-plated contacts
Measuring element	1 x Pt 1000; (to DIN EN 60751, class A)
Media	liquids and gases
Pressure rating	300 bar30 MPa
Note on pressure rating	sensorWhen mounted in adapters the specifications of the adapter data sheet apply.

Electrical data

Operating voltage[V]	18...32 DC; (cULus - Class 2 source required)
Current consumption[mA]	< 50
Protection class	III
Reverse polarity protection	yes
Power-on delay time[s]	1

Inputs / outputs

Number of inputs and outputs

Number of analog outputs: 1

Outputs

Total number of outputs	1
Output signal	analog signal; IO-Link; (configurable)
Number of analog outputs	1
Analog current output[mA]	4...20
Max. load[Ω]	250; ((18...19 V); 19...32 V: 300 Ω)
Short-circuit protection	yes
Overload protection	yes

Measuring/setting range

Probe length L[mm]	86
Measuring range[°C]	-50...150
Factory setting	-50...150 °C

Accuracy / deviations

Precision analog output[K]	± 0,3 + (± 0,1 % MS)
Temperature coefficient[% of the span / 10 K]	0,1; (In case of deviation from the reference condition 25 ± 5 °C)

Reaction times

Dynamic response T05 / T09[s]

1 / 3

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1

Operating conditions

Ambient temperature[°C]	-25...80
Storage temperature[°C]	-40...100
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-2
Shock resistance	DIN IEC 68-2-2750 g (11 ms)
Vibration resistance	DIN IEC 68-2-620 g (10...2000 Hz)
MTTF[years]	572
UL approval	UL approval numberK002

Mechanical data

Weight[g]	134.5
Housing	tubular
Dimensions[mm]	Ø 18.7 / L = 163.9
Material	stainless steel (1.4404 / 316L); PEI; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM
Tightening torque[Nm]	45
Process connection	threaded connection G 1/2 external thread
Probe diameter[mm]	6
Installation length EL[mm]	100
