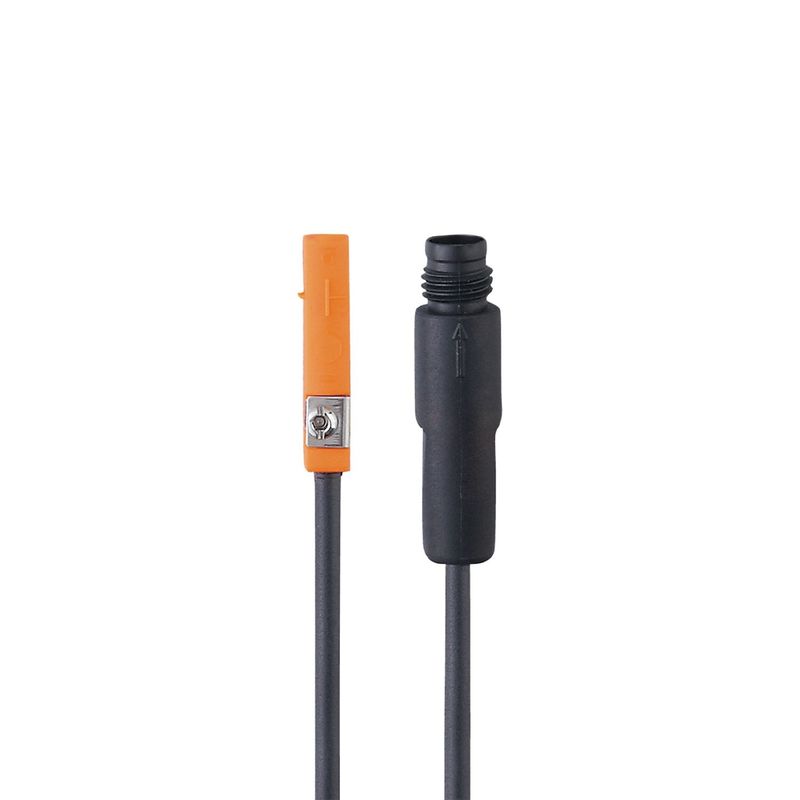

IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS

Name: IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS
Brand: Achievers Automation Limited
SKU: MK5101
Availability: InStock

Brand Name:	IFM
Model Number:	MK5101
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Manufacturer:

IFM

Product No:

MK5101

Display:

Switching Status

Protection:

IP 65; IP 67

Packaging Details:

carton

Supply Ability:

100pcs per month

Product Description

IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS

Self-locking fixture for quick mounting and easy adjustment

Easy fit 'drop from the top' into a slot

Molded cable provides very good strain relief

Clearly visible indication of the switching status

Very high switching frequency

Electrical design	PNP
Output function	normally open
Dimensions[mm]	25 x 5 x 6.5

Electrical data

Operating voltage[V]	10...30 DC; (cULus - Class 2 source required)
Current consumption[mA]	< 10
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time[ms]	30

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	100
Switching frequency DC[Hz]	10000
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Magnetic sensitivity[mT]	2.8
Travel speed[m/s]	> 10

Accuracy / deviations

Hysteresis[mm]	< 1.5
Repeatability[mm]	< 0.2

Operating conditions

Ambient temperature[°C]	-25...85
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD- CD / 8 kV ADEN 61000-4-3 HF radiated10 V/mEN 61000-4-4 Burst2 kVEN 61000-4-6 HF conducted10 VEN 55011class B
MTTF[years]	3694
UL approval	Ta-25...75 °CEnclosure typeType 1voltage supplyLimited Voltage/Current (Marking Class 2)UL approval numberC003File number ULE174191

Mechanical data

Weight[g]	12.1
Mounting	flush mountable
Type of mounting	fastening clamp with combined slot / hexagon socket, width across flats 1.5
Cylinder type	T-slot cylinders
Dimensions[mm]	25 x 5 x 6.5
Material	housing: PA; Fastening clamp: stainless steel

Displays / operating elements

Display

Switching status1 x LED, yellow

Accessories

Items supplied

rubber memory stop: 1cable clip: 1

Remarks

Pack quantity

1 pcs.

Electrical connection - plug

Connection	Cable: 0.3 m, PUR
Connection	Connector: 1 x M8; coding: A; Locking: snap-fit

IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS 0
