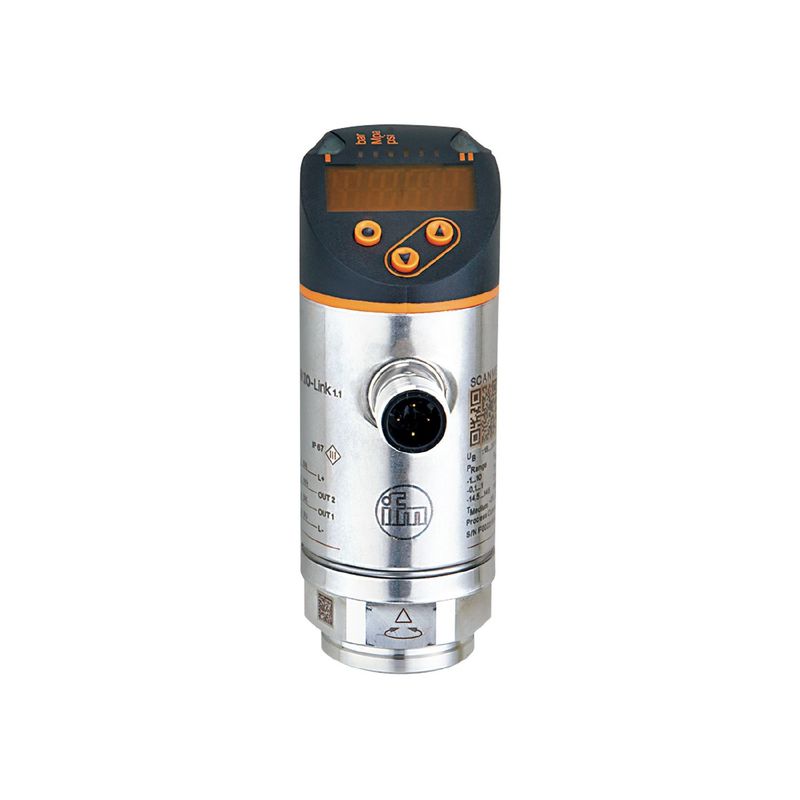

IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG/US/ /V

Name: IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG/US/ /V
Brand: Achievers Automation Limited
SKU: PN7071
Availability: InStock

Brand Name:	IFM
Model Number:	PN7071
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Manufacturer:

IFM

Product No:

PN7071

SDCI Standard:

IEC 61131-9

Packaging Details:

carton

Supply Ability:

100pcs per month

Product Description

IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG/US/ /V

Two switching outputs, one of them with IO-Link communication interface

Red/green display for clear identification of the acceptable range

The process connection can be rotated for optimum alignment

With long-term stability thanks to high overload protection

Robust design for use in harsh industrial environments

Number of inputs and outputs	Number of digital outputs: 2
Measuring range	0...250 bar0...3620 psi0...25 MPa
Process connection	threaded connection G 1/4 Internal thread

Application

System	gold-plated contacts
Measuring element	metallic thin film cell
Application	for industrial applications
Media	liquids and gases
Medium temperature[°C]	-25...80
Min. bursting pressure	1100 bar15950 psi110 MPa
Pressure rating	500 bar7250 psi50 MPa
Vacuum resistance	-1000 mbar-0.1 MPa
Type of pressure	relative pressure

Electrical data

Operating voltage[V]	18...30 DC; (to SELV/PELV)
Current consumption[mA]	< 35
Min. insulation resistance[MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time[s]	< 0.3
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / closed; (configurable)
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC[Hz]	< 170
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes
