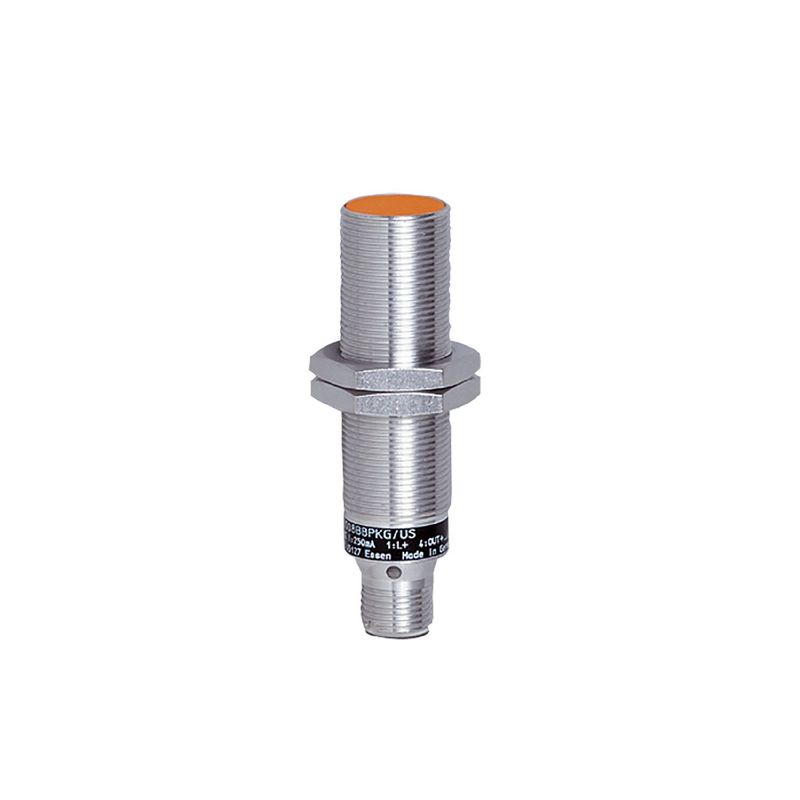

M18 X 1 IP 67 IFM Inductive Sensor IG5595 IGA2005-FRKG US

Name: M18 X 1 IP 67 IFM Inductive Sensor IG5595 IGA2005-FRKG US
Brand: Achievers Automation Limited
SKU: IG5595
Availability: InStock

Brand Name:	IFM
Model Number:	IG5595
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Manufacturer:

IFM

Product No:

IG5595

Thread Designation:

M18 X 1

Protection:

IP 67

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

M18 x 1IFM Inductive sensor

IP 67 IGA2005-FRKG

IG5595

Product Description

IFM Inductive sensor IG5595 IGA2005-FRKG/US

Output function normally open / normally closed programmable

Two-wire technology

Very high switching frequency

Robust metal housing for use in harsh industrial environments

Clearly visible indication of the switching status

Electrical design	PNP/NPN
Output function	normally open / closed; (selectable)
Sensing range[mm]	5
Housing	Threaded type
Dimensions[mm]	M18 x 1 / L = 70

Application

System

gold-plated contacts

Electrical data

Operating voltage[V]	10...55 DC
Current consumption[mA]	< 10
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open / closed; (selectable)
Max. voltage drop switching output DC[V]	2.5
Max. leakage current[mA]	0.5
Permanent current rating of switching output DC[mA]	400
Switching frequency DC[Hz]	700
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Sensing range[mm]	5
Real sensing range Sr[mm]	5 ± 10 %
Operating distance[mm]	0...4.05

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis[% of Sr]	1...20
Switch-point drift[% of Sr]	-10...10

Operating conditions

Ambient temperature[°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD4 kV CD / 8 kV ADEN 61000-4-3 HF radiated10 V/mEN 61000-4-4 Burst2 kVEN 61000-4-5 Surge0,5 kV line to line, Ri: 2 OhmEN 61000-4-6 HF conducted10 VEN 55011class B
MTTF[years]	1775
UL approval	Ta-25...70 °CEnclosure typeType 1voltage supplyClass 2File number ULE174191

Mechanical data

Weight[g]	54.1
Housing	Threaded type
Mounting	flush mountable
Dimensions[mm]	M18 x 1 / L = 70
Thread designation	M18 x 1
Material	brass white bronze coated; sensing face: PBT

Displays / operating elements

Display

Switching status4 x 90° LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity

1 pcs.
