| Brand Name: | p&f |
| Model Number: | HiC2031 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |

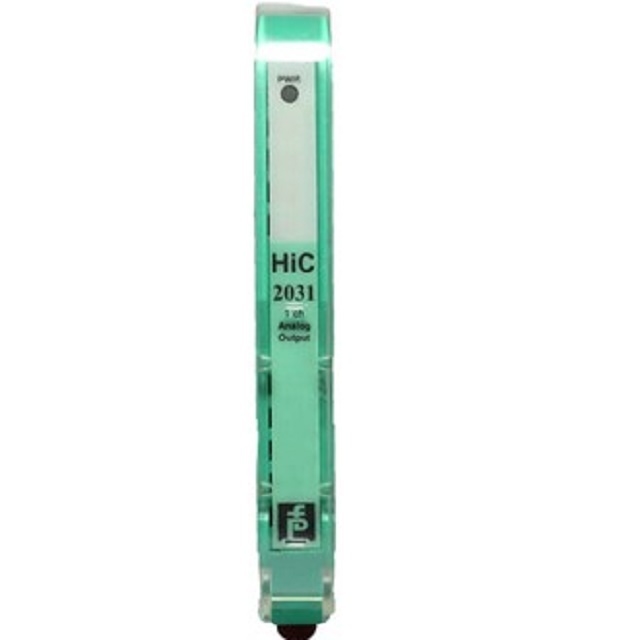

The Pepperl+Fuchs HiC2031 is a single-channel isolated barrier designed as a SMART Current Driver. It operates on a 24 V DC bus-powered supply and provides a current output capable of driving loads up to 625 Ω. This module is engineered for low power dissipation and is particularly suited for applications involving long field cables exceeding 1000 meters. It supports HART-IP communication and is commonly used with valve positioners, offering a safety integrity level of up to SIL 2.
| Property | Value |
| Product Type | Single-Channel Isolated Barrier |
| Function | SMART HART Current Driver |
| Supply Voltage | 24 V DC (bus-powered) |
| Output Signal | 4...20 mA with HART protocol |
| Max. Loop Resistance | 625 Ω |
| Power Dissipation | Low (typ. 0.75 W) |
| Property | Value |
| Communication Support | HART-IP |
| HART Signal | Transparent transmission of HART messages |
| Input Signal | HART FSK signal superimposed on the current input |
| Output Signal | HART FSK signal superimposed on the current output |
| Isolation | Input/Output/Supply/Surface (Channel-to-Channel) |
| Permitted Cable Length | > 1000 meters (for long-field applications) |
| Property | Value |
| Safety Integrity Level (SIL) | Up to SIL 2 (SC 3) acc. to IEC/EN 61508 |
| Fieldbus Foundation Profile | ITK 6.0.2 (SMART HART Driver) |
| EMC Immunity | High immunity to electromagnetic interference |
| Housing Material | Plastic (PBT) |
| Connection Method | Screw-clamp terminals |
| Mounting | Standard 35 mm DIN rail mounting |
