Allen-Bradley 1784-PKTX is an Allen-Bradley network interface card

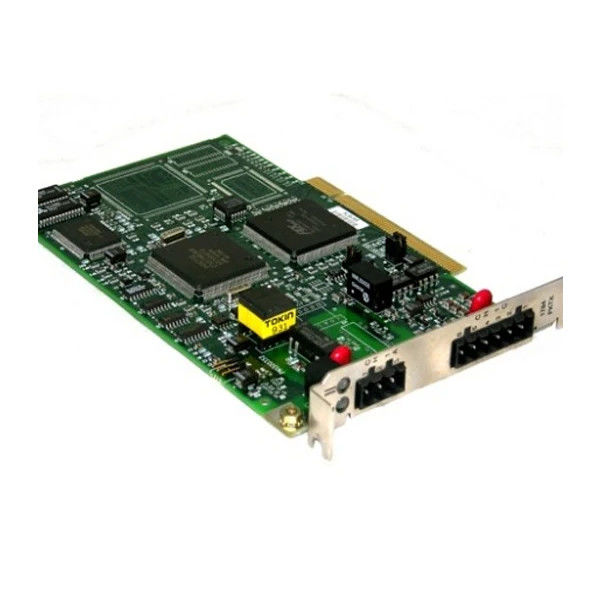

      The 1784-PKTX is an Allen-Bradley network interface card. This card is a PCI 2.3 compliant hardware and provides Data highway Plus (DH+) / Remote I/O (RIO) Channel 1A and DH485 Channel 1B ports.

Manufacturer                          Rockwell Automation

Part Number/Catalog No.      1784-PKTX

Brand                                      Allen-Bradley

Description                             Network Interface card

Communication Protocol:       Data Highway Plus (DH+); Remote I/O (RIO); DH-485

Communication channels:      Channel 1A: DH+ / RIO Channel 1C: DH-485

PCI port:                                  PCI 2.3 compliant

Compatible controllers:           PLC-5, PLC-5/250, and SLC 5/04 processors, and SLC 5/01, SLC 5/02, and SLC5/03 processors (only via 1785-KA5)

Remote I/O scanner:               Supported

DH+ / RIO Maximum cable and communication:    10,000 ft. (3048 m) @ 57.6K bit/s 5, 000 ft. (1,524 m) @ 115.2K bits/s 2,500 ft. (762 m) @ 230.4K bits/s

DH-485 maximum cable and communication:         4,000 ft. (1219 m) @ 1200, 2400, 4800, 9600 or 19,200 bits/s

Status LEDs:                                    1 diagnostic/status LED per channel

Number of modules per system:    Four (4)

Product Line                                   Allen Bradley PLC 5

Module Type                                  Bus Communication Card

Wiring Arm                                     1771-WN

Required External Power                None

Max Modules Per System               4

Bus Communcations                       Local PCI 2.3 Compliant

LEDs                                                1 Diagnosis/Status Per Channel
