IFM Inductive high-temperature sensor IG6119 IGA3008ZBPKG/5M/SH

Name: IFM Inductive high-temperature sensor IG6119 IGA3008ZBPKG/5M/SH
Brand: Achievers Automation Limited
SKU: IG6119
Availability: InStock

Brand Name:	IFM
Model Number:	IG6119
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Manufacturer:

IFM

Product No:

IG6119

Thread Designation:

M18 X 1

Protection:

IP 65

Packaging Details:

carton

Supply Ability:

100pcs per month

Product Description

IFM Inductive high-temperature sensor IG6119 IGA3008ZBPKG/5M/SH

For use in temperatures up to 180 °C

For applications in the steel and glass industries

Sensor and evaluation unit in one housing

Robust stainless steel housing for use in harsh industrial environments

5 m silicone cable for termination outside high temperature environment

Electrical design	PNP
Output function	normally open
Sensing range[mm]	8
Housing	Threaded type
Dimensions[mm]	M18 x 1 / L = 77

Application

high-temperature applications

Electrical data

Operating voltage[V]	10...35 DC
Current consumption[mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC[V]	2
Permanent current rating of switching output DC[mA]	150
Switching frequency DC[Hz]	400
Short-circuit proof	yes
Overload protection	yes

Monitoring range

Sensing range[mm]	8
Operating distance[mm]	0...6.5

Accuracy / deviations

Correction factor	stainless steel: 0.6 / brass: 0.3 / aluminum: 0.2 / copper: 0.1
Hysteresis[% of Sr]	3...15
Switch-point drift[% of Sr]	-15...15

Operating conditions

Ambient temperature[°C]	0...180
Protection	IP 65

Tests / approvals

EMC	EN 61000-4-2 ESD2 kV CD / 4 kV ADEN 61000-4-3 HF radiated3 V/mEN 61000-4-4 Burst2 kVEN 61000-4-6 HF conducted3 V
MTTF[years]	683

Mechanical data

Weight[g]	262.5
Housing	Threaded type
Mounting	non-flush mountable
Dimensions[mm]	M18 x 1 / L = 77
Thread designation	M18 x 1
Material	threaded sleeve: stainless steel; sensing face: LCP

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity

1 pcs.

Electrical connection

Connection

Cable: 5 m, silicone; highly flexible; 3 x 0.22 mm²

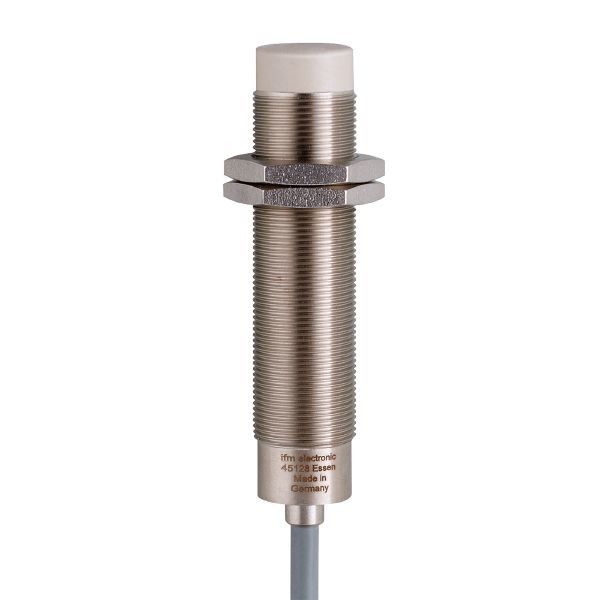

IFM Inductive high-temperature sensor IG6119 IGA3008ZBPKG/5M/SH 0
