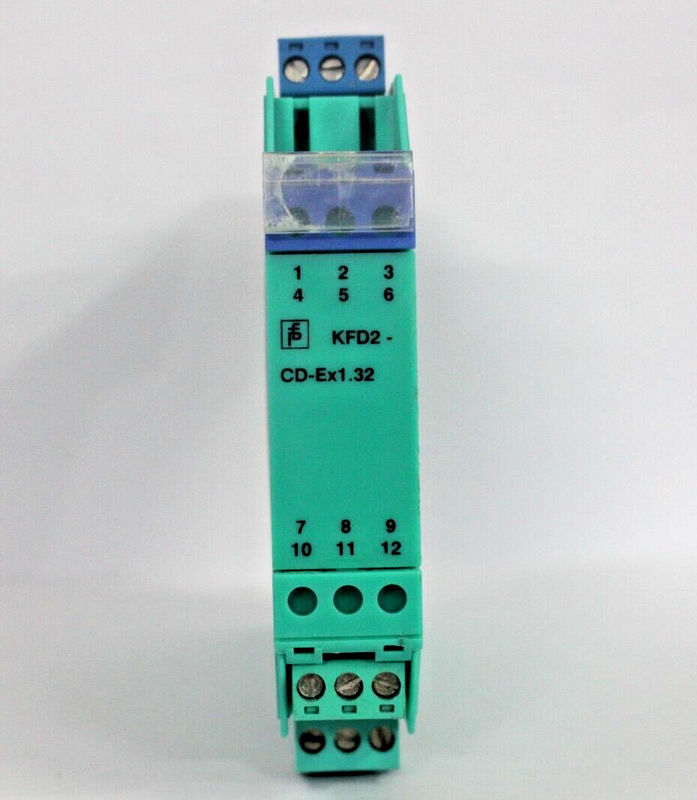

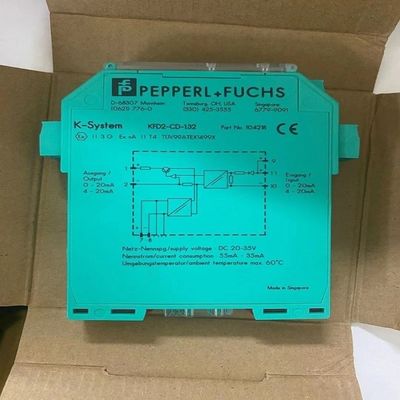

Voltage drop optional current input: approx. 4 V at 20 mA
Input current ≤ 100 µA up to 50 °C (122 °F) at 10 V
Limit optional current input: Input current: approx. ≤40 mA
optional voltage input: input voltage: 12 V DC
Transmission range optional current input: 0 ... 20 mA/optional voltage input: 0 ... 10 V
Output
Connection side field side
Connection terminals 1+, 2-
Voltage optional current output: 17 V at 20 mA/optional voltage output: 0 ... 10 V
Current optional current output: 0 ... 20 mA/optional voltage output: ≤ 20 mA
Load optional current output: max. 850 Ω
optional voltage output: output resistance max. 3 Ω
Transfer characteristics
Accuracy 0.1 %
Deviation
After calibration ≤ ± 0.1 % incl. non-linearity and hysteresis at 20 °C (68 °F)
Influence of ambient temperature ≤ ± 0.01 %/K
Rise time < 10 ms
Galvanic isolation
Input/power supply functional insulation, rated insulation voltage 50 V AC
Indicators/settings
Display elements LED
Labeling space for labeling at the front
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Conformity
Degree of protection IEC 60529:2001
Protection against electrical shock UL 61010-1:2004
Ambient conditions
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Mass approx. 100 g
Dimensions 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Height 107 mm
Width 20 mm
Depth 115 mm
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
