Pepperl Fuchs Safety Barrier
Created with Pixso. 0 - 20V Pepperl Fuchs Safety Barrier Voltage Repeater KFD2-VR4-Ex1.26

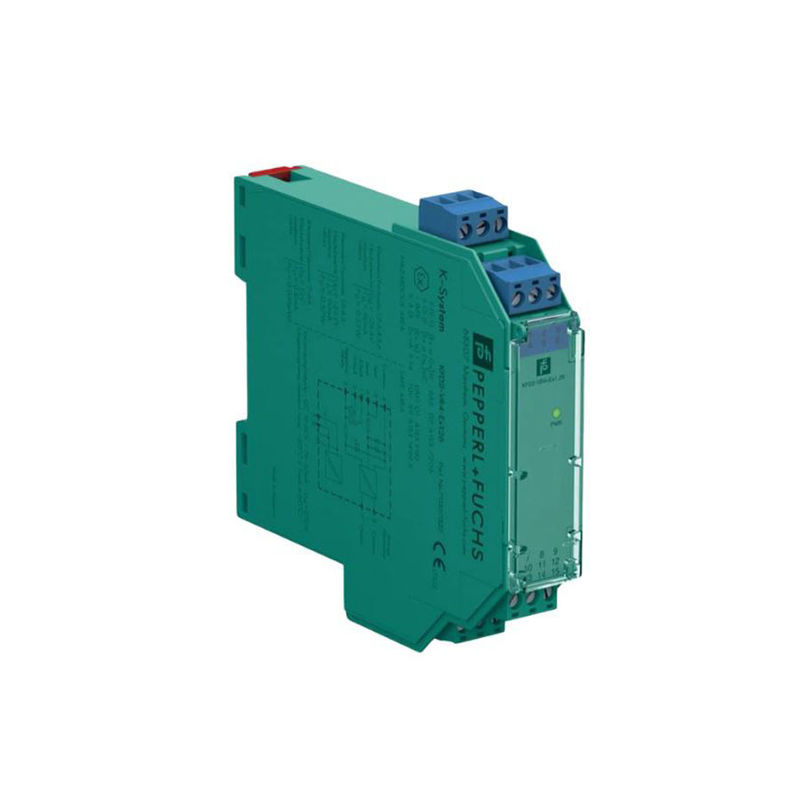

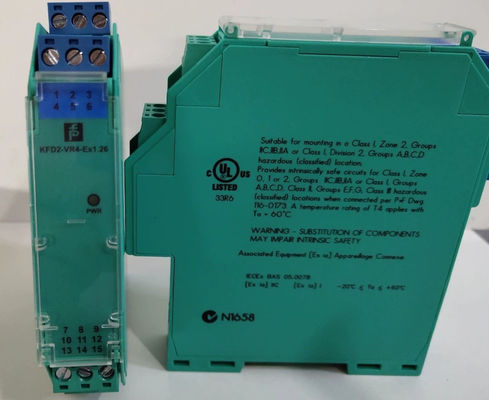

0 - 20V Pepperl Fuchs Safety Barrier Voltage Repeater KFD2-VR4-Ex1.26

Brand Name: PEPPERL FUCHS
Model Number: KFD2-VR4-Ex1.26
MOQ: 1
Price: Negotiable
Delivery Time: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
Germany
Manufacturer:
PEPPERL FUCHS
Product No:
KFD2-VR4-Ex1.26
Rated Voltage:
19 ... 30 V DC
Ripple:
Within The Supply Tolerance
Connection Side:
Field Side
Connection:
Terminals 7-, 8+
Voltage:
-20 ... 0 V

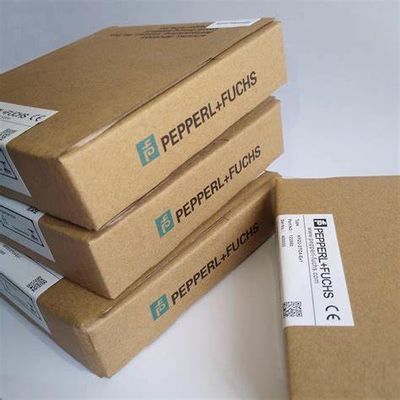

Packaging Details:
carton
Supply Ability:
100pcs per month
Highlight:

20V Pepperl Fuchs Safety Barrier

,

KFD2-VR4-Ex1.26

,

PE20V PPERL FUCHS Voltage Repeater

Product Description

PEPPERL FUCHS Voltage Repeater KFD2-VR4-Ex1.26 Voltage output 0 V ... -20 V







General specifications
Signal type    Analog input
Functional safety related parameters
Safety Integrity Level (SIL)    SIL 2
Supply
Connection    Power Rail or terminals 11+, 12-
Rated voltage    19 ... 30 V DC
Ripple    within the supply tolerance
Power dissipation    ≤ 1.2 W
Power consumption    ≤ 1.6 W
Input
Connection side    field side
Connection    terminals 4 (common), 1, 3 and 5 (supply -), 2 and 6 (signal -)
Input resistance    10 kΩ terminals 4 (common), 6-/2-
Output current    terminals 4 (common), 5-: > 10 mA at -21 V or > 20 mA at -18 V
terminals 4 (common), 1-: 5.3 mA ±0.4 mA at -10 V
terminals 4 (common), 3-: 3.6 mA ±0.7 mA at -10 V, 20 °C (68 °F)
Transmission range    -20 ... 0 V
Output
Connection side    control side
Connection    terminals 7-, 8+
Voltage    -20 ... 0 V
Load    ≥ 9 kΩ (3-wire sensor), ≥ 2 kΩ (2-wire sensor)
Output resistance    24 Ω typ., 27 Ω maximum
Since this is much less than the end-to-end resistance of a zener barrier, it may be necessary to specify a monitor intended for use without a barrier. Please follow the advice of the monitor manufacturer.
Transfer characteristics
Cut-off frequency    10 kHz (-0,1 dB)
20 kHz (-1 dB)
Deviation    DC transfer error (with 10 kΩ load) < 10mV
After calibration    additional error with AC superimposed is ±5 mV at 20 °C (68 °F) at any point within the span, provided that the alternating component of the input voltage is not excessive, e. g.
- square waves (0 ... 20 kHz): 5 Vpp
- sine waves (0 ... 20 kHz): the full span of 20 Vpp (= 100 g peak acceleration at 100 mV/g) is acceptable.
Influence of ambient temperature    (< 100 ppm of span)/K at any point within the span
Time delay relative to input    7.1 ±0.3 µs
Ripple    in 200 kHz bandwidth < 20 mVrms
in 20 kHz bandwidth < 3 mVrms
