| Brand Name: | PEPPERL FUCHS |
| Model Number: | HiC2031 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |

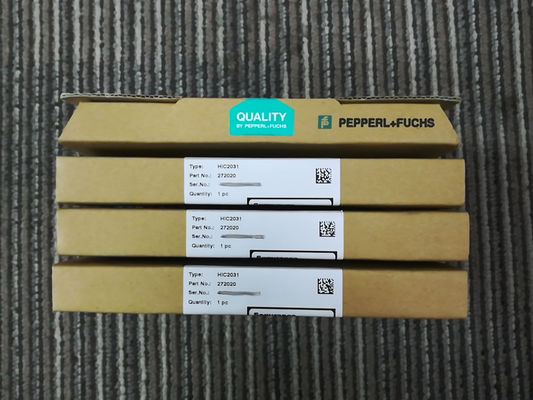

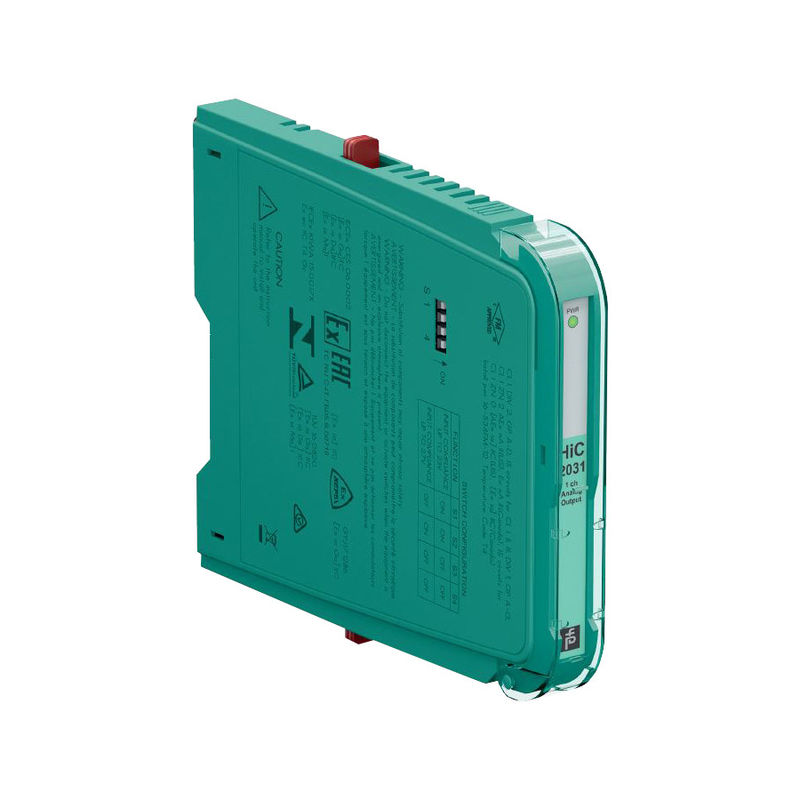

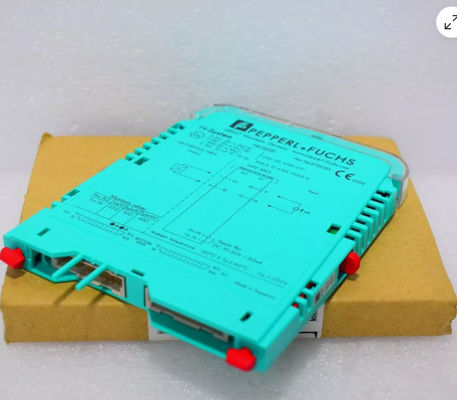

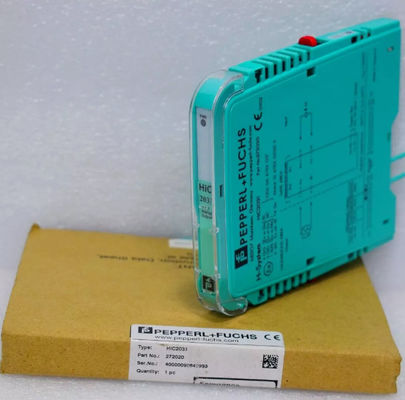

PEPPERL FUCHS SMART Current Driver HiC2031 1-channel isolated barrier
Technical Data
Ripple ≤ 10 %
Rated current Ir ≤ 30 mA at 24 V
Power dissipation ≤ 600 mW at 20 mA and 500 Ω load
Power consumption ≤ 700 mW
Input
Connection side control side
Connection SL1: 8a(+), 7a(-)
Input signal 4 ... 20 mA , limited to approx. 26 mA
Input voltage open loop voltage of the control system < 30 V
Voltage drop approx. 6 V at 20 mA
Input resistance > 100 kΩ, with field wiring open
Output
Connection side field side
Connection SL2: 5a(+), 5b(-)
Voltage ≥ 13 V at 20 mA
Current 4 ... 20 mA
Load 0 ... 650 Ω
Ripple 20 mV rms
General specifications
Signal type Analog output
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
Systematic capability (SC) SC 3
Supply
Connection SL1: 1a(-), 1b(-); 2a(+), 2b(+)
Rated voltage 19 ... 30 V DC bus powered via Termination Board
Ripple ≤ 10 %
Rated current ≤ 30 mA at 24 V
Power dissipation ≤ 600 mW at 20 mA and 500 Ω load
Power consumption ≤ 700 mW
Input
Connection side control side
Connection SL1: 8a(+), 7a(-)
Input signal 4 ... 20 mA , limited to approx. 26 mA
Input voltage open loop voltage of the control system < 30 V
Voltage drop approx. 6 V at 20 mA
Input resistance > 100 kΩ, with field wiring open
Output
Connection side field side
Connection SL2: 5a(+), 5b(-)
Voltage ≥ 13 V at 20 mA
Current 4 ... 20 mA
Load 0 ... 650 Ω
Ripple 20 mV rms
Transfer characteristics
Deviation at 20 °C (68 °F), 4 ... 20 mA
< 0.1 % of full scale, incl. non-linearity and hysteresis
Influence of ambient temperature < 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))
Frequency range field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB)
control side into the field side: bandwidth with 1 mApp signal 0 ... 3 kHz (-3 dB)
Rise time 10 to 90 % ≤ 10 ms
