P&F SMART Transmitter Power Supply KCD2-STC-Ex1for Quick Response

Name: P&F SMART Transmitter Power Supply KCD2-STC-Ex1for Quick Response
Brand: Achievers Automation Limited
SKU: P+F-KCD2-STC-Ex1
Availability: InStock

Brand Name:	EATON
Model Number:	P+F-KCD2-STC-Ex1
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ATEX

Document:

316910_eng.pdf

Settling Time:

≤ 50 Ms

Rise Time/fall Time:

≤ 10 Ms

Display Elements:

LED

Control Elements:

DIP Switch

Configuration:

Via DIP Switches

Labeling:

Space For Labeling At The Front

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

Power Supply KCD2-STC-Ex1

P&F SMART Transmitter Power Supply

Product Description

SMART Transmitter Power Supply KCD2-STC-Ex1

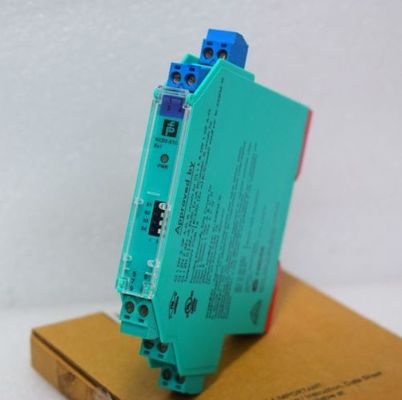

P&F SMART Transmitter Power Supply KCD2-STC-Ex1for Quick Response 0

"Your automation, our passion"—Pepperl+Fuchs' company claim is also our promise to our customers: that we are committed and passionate about developing solutions and products that optimally support their automation challenges.A spirit of research, entrepreneurial vision, and a belief in their own abilities—in 1945, founding fathers Walter Pepperl and Ludwig Fuchs laid the foundations for a success story in a small radio workshop in Mannheim that continues to this day. A look at 80-year history of Pepperl+Fuchs reveals many milestones, including the invention of the inductive proximity sensor in 1958, which not only demonstrates the company's consistently high level of innovation. It also reflects a fundamental attitude that has been the most important pillar of this success story from the very beginning: working in partnership with our customers, working together as equals.

This isolated barrier is used for intrinsic safety applications. The device supplies 2-wire SMART transmitters in a hazardous area, and can also be used with 2-wire SMART current sources. It transfers the analog input signal to the safe area as an isolated current value. Digital signals may be superimposed on the input signal in the hazardous or safe area and are transferred bi-directionally. Selectable output of current source, sink mode, or voltage output is available via DIP switches. If the HART communication resistance in the loop is too low, the internal resistance of 250 Ω between terminals 6 and 8 can be used. Test sockets for the connection of HART communicators are integrated into the terminals of the device.

Safety Integrity Level (SIL)	SIL 2
Systematic capability (SC)	SC 3
Connection	Power Rail or terminals 9+, 10-
Rated voltage	19 ... 30 V DC
Influence of ambient temperature	< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F)) (source mode and sink mode 4 ... 20mA) < 0.5 mV/K (-20 ... 70 °C (-4 ... 158 °F)); < 1 mV/K (-40 ... -20 °C (-40 ... -4 °F)) (source mode 1...5 V)

Connection side	field side
Input signal	4 ... 20 mA limited to approx. 26 mA
Connection	Power Rail or terminals 9+, 10-
Open circuit voltage/short-circuit current	terminals 1+, 2-: 22 V / 26 mA
Open circuit voltage/short-circuit current	terminals 1+, 2-: 22 V / 26 mA

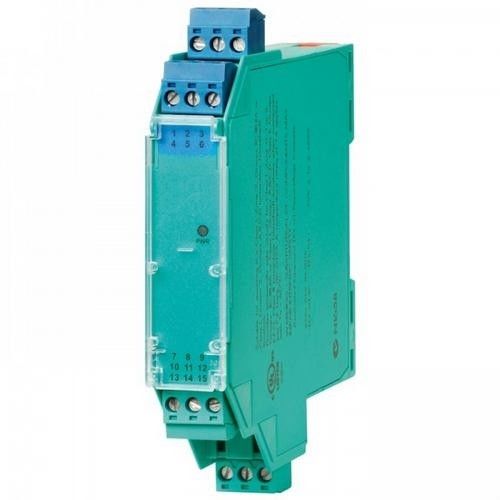

P&F SMART Transmitter Power Supply KCD2-STC-Ex1for Quick Response 1

https://www.achieversinstruments.com/ and Emerson Hand Communicator TREXCHPNAWS1S, rosemount 0068

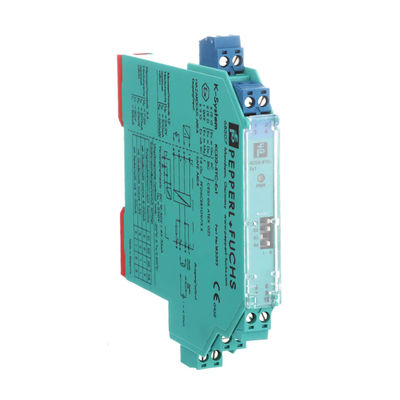

P&F SMART Transmitter Power Supply KCD2-STC-Ex1for Quick Response 3

Achievers Automation Limited is a well-established player in the field of industrial automation, boasting a rich and extensive experience of more than 12 years.

Over these years, the company has dedicated itself to dealing with a comprehensive and complete range of industrial automation components and instruments. With an unwavering commitment to excellence, the team at Achievers always goes the extra mile, striving their absolute best to provide top-notch quality goods and highly efficient, timely services to our esteemed and valued customers.

These customers hail from over 45 countries across the globe, spanning different continents and diverse industrial landscapes.

FAQ of Achievers

Q:Are preferential prices available?

A: We provide customers with competitive product prices and the biggest discounts through a long-term cooperative supply chain system.

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT,UPS with good price.

Q:What is the warranty of goods?

A: One-year Warranty.

Q:Which are the best-selling products?

A: Many brands of products have been supplied to customers from all over the world for a long time. For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W,Emerson Hand Communicator TREXCHPNAWS1S,xnx transmitter honeywell

Tags:

isolation barrier electrical

inductive proximity sensor

DIN rail mountable

LED Pepperl Fuchs Safety Barrier Vt18 8 H 120 M 40a 65b 118 128 Diffuse Mode Sensor Flashing

Get Best Price

video

2000mm Universal Power Rail UPR 03 PEPPERL FUCHS Eliminates Daisy Chains

Get Best Price

video

Smart Pepperl Fuchs Safety BarrierTransmitter Power Supply KCD2-STC-Ex1.2O Terminal Blocks

Get Best Price

video

230VAC Rotation Speed Monitor KFA6-DWB-Ex1.D Supply PEPPERL FUCHS

Get Best Price

video

0 - 20V Pepperl Fuchs Safety Barrier Voltage Repeater KFD2-VR4-Ex1.26

Get Best Price

video

PEPPERL FUCHS HiC2031 1 Channel Isolation Barrier Electrical SMART Current Driver

Get Best Price

video

16 Channel IP20 Pepperl Fuchs Safety Barrier HART MUX Primary Module KFD2-HMM-16

Get Best Price

video

Accuracy 0.1% PEPPERL FUCHS KFD2-CD-Ex1.32 Current Voltage Driver

Get Best Price

Products Details

Home Products

Pepperl Fuchs Safety Barrier

P&F SMART Transmitter Power Supply KCD2-STC-Ex1for Quick Response

All Category

Bently Nevada Proximity Probe

Endress Hauser Instruments

Allen Bradley PLC Controllers

Pepperl Fuchs Safety Barrier

TE Dynamic Products

MTL Instruments

Yokogawa Instruments

DETCON Gas Detection

Phoenix Contact Products

Rosemount PH Sensors

Asco Electric Solenoid Valve

SICK Instruments

IFM Sensor

Festo Cylinder

SIEMENS PLC Products

P&F SMART Transmitter Power Supply KCD2-STC-Ex1for Quick Response

Brand Name:	EATON
Model Number:	P+F-KCD2-STC-Ex1
MOQ:	1
Price:	Negotiable
Packaging Details:	carton
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Brand Name:

EATON

Certification:

ATEX

Model Number:

P+F-KCD2-STC-Ex1

Document:

316910_eng.pdf

Settling Time:

≤ 50 Ms

Rise Time/fall Time:

≤ 10 Ms

Display Elements:

LED

Control Elements:

DIP Switch

Configuration:

Via DIP Switches

Labeling:

Space For Labeling At The Front

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

carton

Delivery Time:

Negotiable

Payment Terms:

T/T,XT,ALIPAY

Supply Ability:

100pcs per month

Highlight:

Power Supply KCD2-STC-Ex1

P&F SMART Transmitter Power Supply

Product Description

SMART Transmitter Power Supply KCD2-STC-Ex1

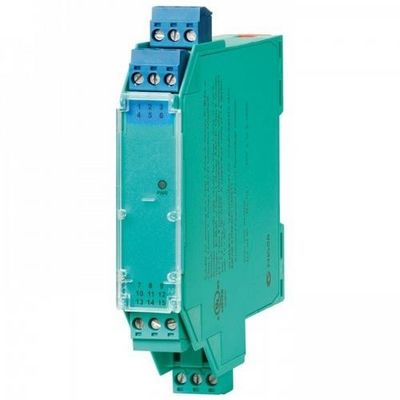

P&F SMART Transmitter Power Supply KCD2-STC-Ex1for Quick Response 0
