P&F Z787.H.F Zener Barrier 12.5 x 115 x 116 mm 0.5 x 4.5 x 4.6 inch W x H x D Construction Type Modular Terminal Housing

Name: P&F Z787.H.F Zener Barrier 12.5 x 115 x 116 mm 0.5 x 4.5 x 4.6 inch W x H x D Construction Type Modular Terminal Housing
Brand: Achievers Automation Limited
SKU: P+F-Zener Barrier Z787.H.F
Availability: InStock

Brand Name:	EATON
Model Number:	P+F-Zener Barrier Z787.H.F
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ATEX

Document:

072179_eng.pdf

Mass:

Approx. 150 G

Dimensions:

12.5 X 115 X 116 Mm (0.5 X 4.5 X 4.6 Inch) (W X H X D)

Construction Type:

Modular Terminal Housing , See System Description

Mounting:

On 35 Mm DIN Mounting Rail Acc. To EN 60715:2001

EU-type Examination Certificate:

BAS 00 ATEX 7096

Directive 2014/34/EU:

EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

115 x 116 mm Zener Barrier

4.5 x 4.6 inch Zener Barrier

Z787.H.F Zener Barrier

Product Description

Zener Barrier Z787.H.F

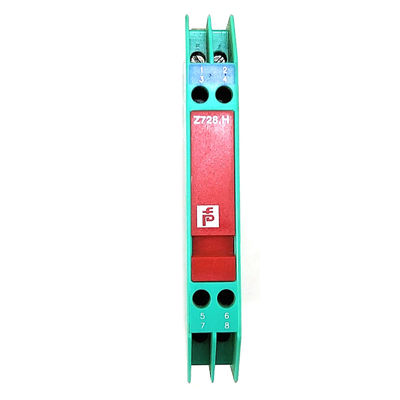

P&F Z787.H.F Zener Barrier 12.5 x 115 x 116 mm 0.5 x 4.5 x 4.6 inch W x H x D Construction Type Modular Terminal Housing 0

"Your automation, our passion"—Pepperl+Fuchs' company claim is also our promise to our customers: that we are committed and passionate about developing solutions and products that optimally support their automation challenges.A spirit of research, entrepreneurial vision, and a belief in their own abilities—in 1945, founding fathers Walter Pepperl and Ludwig Fuchs laid the foundations for a success story in a small radio workshop in Mannheim that continues to this day. A look at 80-year history of Pepperl+Fuchs reveals many milestones, including the invention of the inductive proximity sensor in 1958, which not only demonstrates the company's consistently high level of innovation. It also reflects a fundamental attitude that has been the most important pillar of this success story from the very beginning: working in partnership with our customers, working together as equals.

The Zener Barrier prevents the transfer of unacceptably high energy from the safe area into the hazardous area. The zener diodes in the Zener Barrier are connected in the reverse direction. The breakdown voltage of the diodes is not exceeded in normal operation. If this voltage is exceeded, due to a fault in the safe area, the diodes start to conduct, causing the fuse to blow. The Zener Barrier has a positive polarity, i. e. the anodes of the zener diodes are grounded. Additionally this Zener Barrier is equipped with a replaceable fuse. This high power version has a smaller serial resistance and therefore provides higher voltage to the field device. The Zener Barrier is for evaluation of signals from the hazardous area. The diodes of diode return prevent a current into the hazardous area, therefore the current assumption for intrinsic safety calculations is zero. Depending on the application, increased or decreased intrinsic safety parameters apply for serial or parallel connection. For the detailed parameters refer to the Zener Barrier certificate. Application examples can be found in the system description of the Zener Barriers.

Connection	terminals 5, 6; 7, 8
Working voltage	max. 27 V
Measurement loop	max. 26.5 V at 10 µA
Degree of protection	IEC 60529
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)

Storage temperature	-25 ... 70 °C (-13 ... 158 °F)
Relative humidity	max. 75 % , without condensation
Degree of protection	IP20
Connection	screw terminals
Core cross section	max. 2 x 2.5 mm2

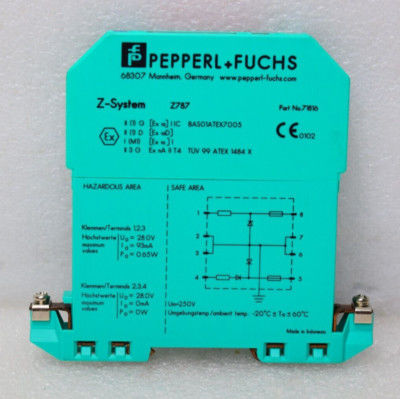

P&F Z787.H.F Zener Barrier 12.5 x 115 x 116 mm 0.5 x 4.5 x 4.6 inch W x H x D Construction Type Modular Terminal Housing 1

https://www.achieversinstruments.com/ and Emerson Hand Communicator TREXCHPNAWS1S, rosemount 0068

P&F Z787.H.F Zener Barrier 12.5 x 115 x 116 mm 0.5 x 4.5 x 4.6 inch W x H x D Construction Type Modular Terminal Housing 3

Achievers Automation Limited is a well-established player in the field of industrial automation, boasting a rich and extensive experience of more than 12 years.

Over these years, the company has dedicated itself to dealing with a comprehensive and complete range of industrial automation components and instruments. With an unwavering commitment to excellence, the team at Achievers always goes the extra mile, striving their absolute best to provide top-notch quality goods and highly efficient, timely services to our esteemed and valued customers.

These customers hail from over 45 countries across the globe, spanning different continents and diverse industrial landscapes.

FAQ of Achievers

Q:Are preferential prices available?

A: We provide customers with competitive product prices and the biggest discounts through a long-term cooperative supply chain system.

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT,UPS with good price.

Q:What is the warranty of goods?

A: One-year Warranty.

Q:Which are the best-selling products?

A: Many brands of products have been supplied to customers from all over the world for a long time. For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W,Emerson Hand Communicator TREXCHPNAWS1S,xnx transmitter honeywell
