P&F Through-beam Ultrasonic Barrier UBE800-F77-SE2-V31

Name: P&F Through-beam Ultrasonic Barrier UBE800-F77-SE2-V31
Brand: Achievers Automation Limited
SKU: P+F-UBE800-F77-SE2-V31
Availability: InStock

Brand Name:	EATON
Model Number:	P+F-UBE800-F77-SE2-V31
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ATEX

Input Type:

1 Program Input (receiver)

Level:

Low Level : 0 ... 0.7 V ; High Level : > 14 V

Input Impedance:

16 KΩ

Pulse Length:

≥ 3 S

Output Type:

1 Switch Output PNP, NO

Rated Operating Current:

200 MA , Short-circuit/overload Protected

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

UBE800-F77-SE2-V31 Ultrasonic Barrier

P&F Ultrasonic Barrier

Product Description

SMART Transmitter Power Supply KCD2-STC-1

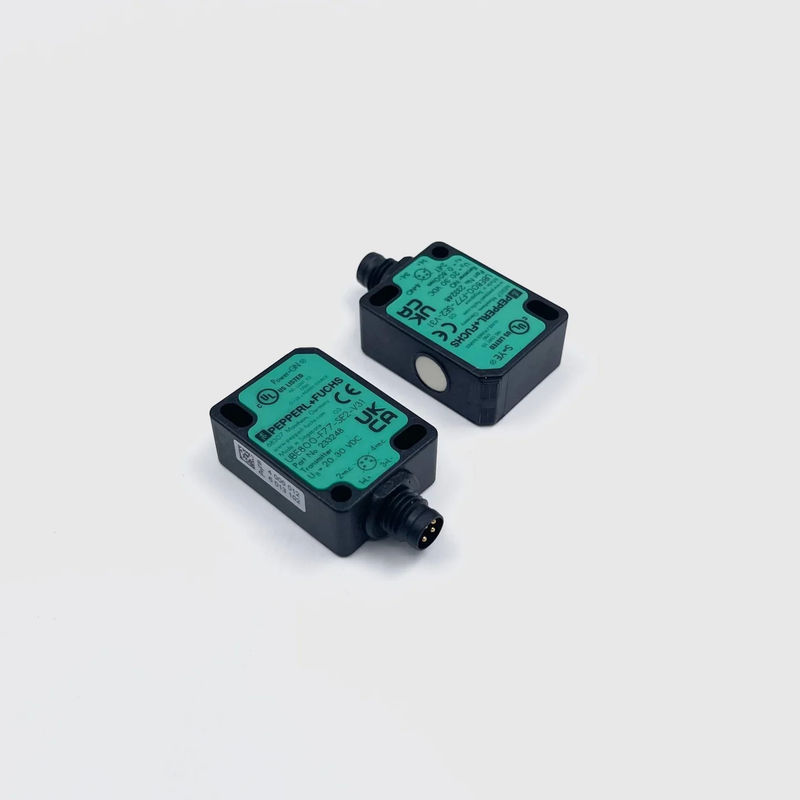

P&F Through-beam Ultrasonic Barrier UBE800-F77-SE2-V31 0

"Your automation, our passion"—Pepperl+Fuchs' company claim is also our promise to our customers: that we are committed and passionate about developing solutions and products that optimally support their automation challenges.A spirit of research, entrepreneurial vision, and a belief in their own abilities—in 1945, founding fathers Walter Pepperl and Ludwig Fuchs laid the foundations for a success story in a small radio workshop in Mannheim that continues to this day. A look at 80-year history of Pepperl+Fuchs reveals many milestones, including the invention of the inductive proximity sensor in 1958, which not only demonstrates the company's consistently high level of innovation. It also reflects a fundamental attitude that has been the most important pillar of this success story from the very beginning: working in partnership with our customers, working together as equals.

An ultrasonic thru-beam sensor always consists of an ultrasonic emitter and receiver. The working principle of the ultrasonic thru-beam sensor is based on the interruption of the transmission from the emitter to the receiver by the object to be detected (obstacle). The emitter produces an ultrasonic signal which is evaluated by the receiver. If the signal is damped or broken by the object being detected, the receiver switches state. No electrical connections are required between the emitter and receiver.

Sensing range	0 ... 800 mm emitter/receiver spacing
Standard target plate	see table
Transducer frequency	approx. 300 kHz
Response delay	≤ 5 ms
RPermissible cable length	max. 300 m

LED green	Power on ( emitter )
LED yellow	switching state ( receiver )
Rated operating voltage	24 V DC
Operating voltage	20 ... 30 V DC , ripple 10 %SS ; 12 ... 20 V DC sensitivity reduced to 80 %
No-load supply current	≤ 20 mA

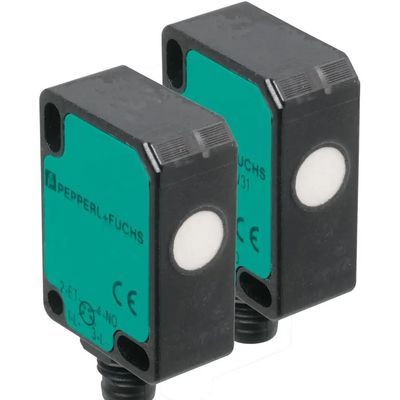

P&F Through-beam Ultrasonic Barrier UBE800-F77-SE2-V31 1
