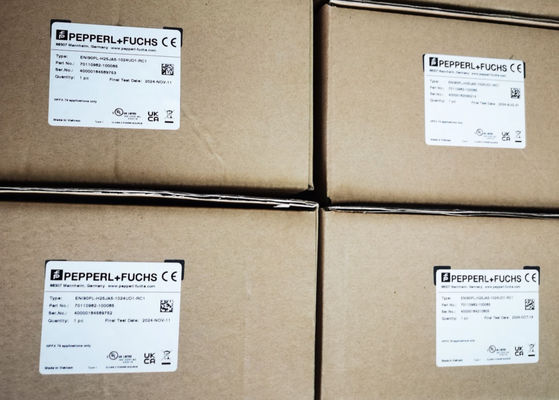

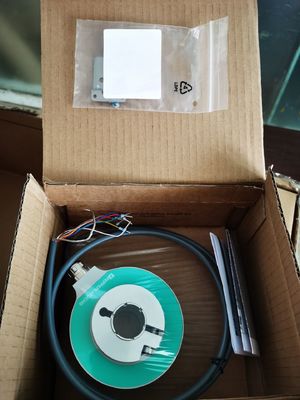

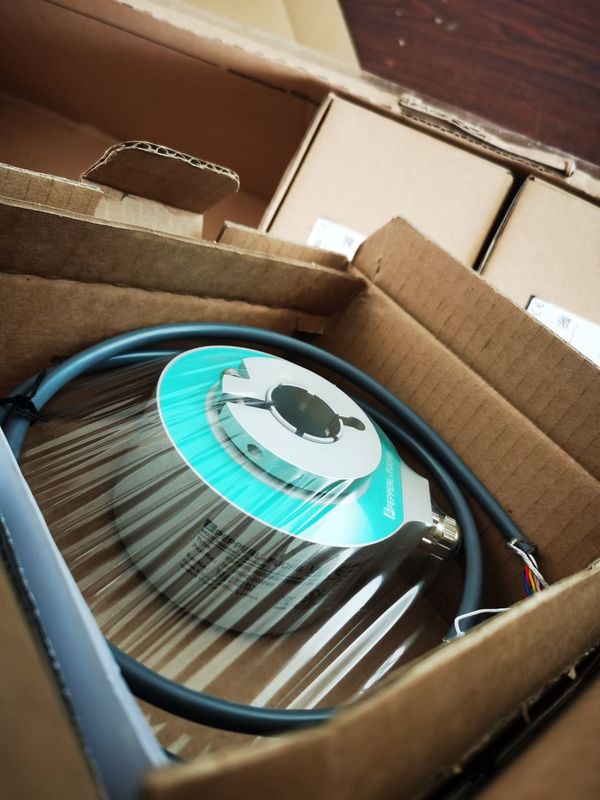

Pepperl Fuchs ENI90PL-H25JA5-1024UD1-RC1 Incremental rotary encoder

General specifications

Detection type    photoelectric sampling

Linearity error    ± 0.025 °

Pulse count    max. 5000

Functional safety related parameters

MTTFd    435 a

Mission Time (TM)    10 a

Diagnostic Coverage (DC)    0 %

Electrical specifications

Operating voltage    4.75 ... 30 V DC

No-load supply current    max. 50 mA

Output

Output type    push-pull or RS422 (universal output driver, output level depending on input voltage)

Load current    max. per channel 40 mA , short-circuit protected, reverse polarity protected

Output frequency    max. 400 kHz

Rise time    300 ns

Phase position A to B

Pulse counts < 3600    90 ° ± 9 ° electrical

Pulse counts ≥ 3600    90 ° ± 25 ° electrical

Duty cycle    1/2 ± 10 %

Connection

Connector    M12 connector, 8-pin

M12 connector, 5 pin

M23 connector, 12-pin , clockwise rotation

M23 connector, 12-pin , counter clockwise rotation

10-pin MIL connector

7-pin MIL connector

Cable    ∅6 mm, 4 x 2 x 0.14 mm2

Standard conformity

Degree of protection    DIN EN 60529, IP65, IP66, IP67

Climatic testing    DIN EN 60068-2-78 , no moisture condensation

Emitted interference    EN IEC 61000-6-4:2019

Noise immunity    EN IEC 61000-6-2:2019

Shock resistance    DIN EN 60068-2-27, 300 g, 6 ms

Vibration resistance    DIN EN 60068-2-6, 30 g, 10 ... 2000 Hz

Approvals and certificates

UL approval    E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request

Maximum permissible ambient temperature    max. 80 °C (max. 176 °F)

Ambient conditions

Operating temperature    -40 ... 85 °C (-40 ... 185 °F) , cable, fixed installation

-5 ... 85 °C (23 ... 185 °F) , movable cable

Storage temperature    -40 ... 85 °C (-40 ... 185 °F)
