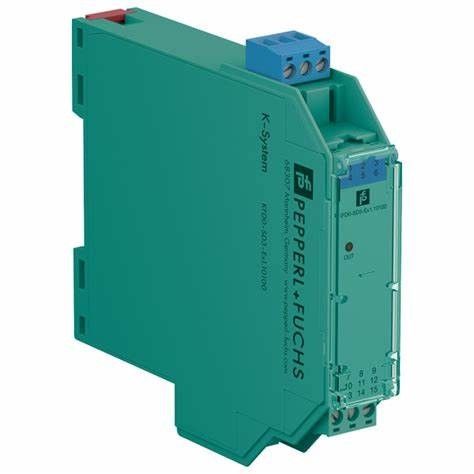

PEPPERL FUCHS Solenoid Driver KFD0-SD2-Ex1.10100 1-channel isolated barrier

General specifications
Signal type    Digital Output
Functional safety related parameters
Safety Integrity Level (SIL)    SIL 3
Supply
Rated voltage    20 ... 35 V DC , loop powered
Power dissipation    < 1.2 W (Ui ≤ 30 V)
Input
Connection side    control side
Connection    terminals 7, 8
Rated voltage    20 ... 35 V DC
Current    150 mA at 20 V input voltage, load = 100 Ω
100 mA at 35 V input voltage, load = 100 Ω
Output
Connection side    field side
Connection    terminals 1+, 2-
Internal resistor    ≤ 68 Ω
Current    ≥ 100 mA
Voltage    ≥ 9.5 V
Open loop voltage    min. 16.2 V
Output current    100 mA
Output signal    These values are valid for the rated operating voltage 20 ... 35 V DC.
Energized/De-energized delay    single operation: typ. 1.7 ms/50 µs; periodical: typ. 5 µs/50 µs
Indicators/settings
Display elements    LED
Labeling    space for labeling at the front
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU    EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility    NE 21:2006
Degree of protection    IEC 60529:2001
Protection against electrical shock    UL 61010-1:2004
Ambient conditions
Ambient temperature    -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection    IP20
Connection    screw terminals
Mass    approx. 100 g
Dimensions    20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Height    107 mm
Width    20 mm
Depth    115 mm
Mounting    on 35 mm DIN mounting rail acc. to EN 60715:2001
