KFD0-SD2-Ex1.1045 Solenoid Driver With Output Signal Energized/De-energized Delay Single Operation Typ. 1.7 Ms/50 Μs

Name: KFD0-SD2-Ex1.1045 Solenoid Driver With Output Signal Energized/De-energized Delay Single Operation Typ. 1.7 Ms/50 Μs
Brand: Achievers Automation Limited
SKU: P+F-KFD0-SD2-Ex1.1045
Availability: InStock

Brand Name:	EATON
Model Number:	P+F-KFD0-SD2-Ex1.1045
MOQ:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ATEX

Current:

≤ 45 MA

Voltage:

≥ 10 V

Open Loop Voltage:

Min. 22.7 V

Output Rated Operating Current:

45 MA

Output Signal:

These Values Are Valid For The Rated Operating Voltage 20 ... 35 V DC.

Energized/De-energized Delay:

Single Operation: Typ. 1.7 Ms/50 µs; Periodical: Typ. 5 µs/50 µs

Packaging Details:

carton

Supply Ability:

100pcs per month

Highlight:

KFD0-SD2-Ex1.1045 Solenoid Driver

KFD0-SD2-Ex1.1045

Product Description

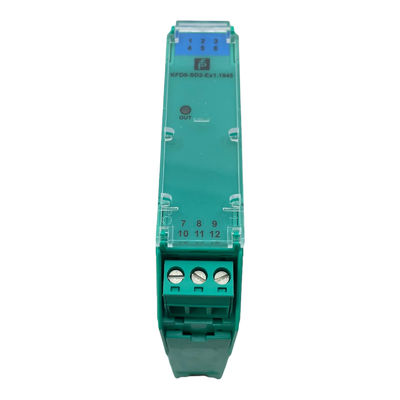

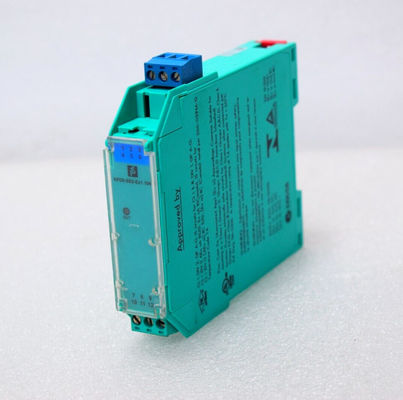

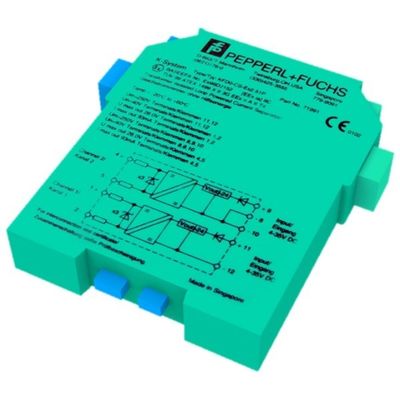

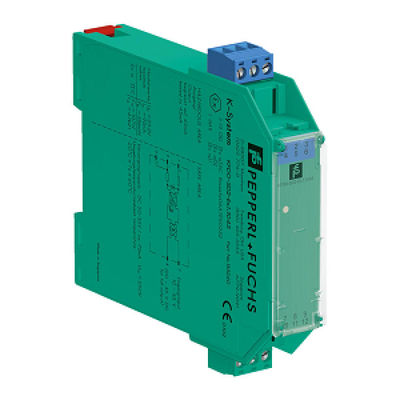

Solenoid Driver KFD0-SD2-Ex1.1045

KFD0-SD2-Ex1.1045 Solenoid Driver With Output Signal Energized/De-energized Delay Single Operation Typ. 1.7 Ms/50 Μs 0

"Your automation, our passion"—Pepperl+Fuchs' company claim is also our promise to our customers: that we are committed and passionate about developing solutions and products that optimally support their automation challenges.A spirit of research, entrepreneurial vision, and a belief in their own abilities—in 1945, founding fathers Walter Pepperl and Ludwig Fuchs laid the foundations for a success story in a small radio workshop in Mannheim that continues to this day. A look at 80-year history of Pepperl+Fuchs reveals many milestones, including the invention of the inductive proximity sensor in 1958, which not only demonstrates the company's consistently high level of innovation. It also reflects a fundamental attitude that has been the most important pillar of this success story from the very beginning: working in partnership with our customers, working together as equals.

This isolated barrier is used for intrinsic safety applications.The device supplies power to solenoids, LEDs and audible alarms located in a hazardous area.The device is loop powered, so the available energy at the output is received from the input signal. The output signal has a resistive characteristic.As a result the output voltage and current are dependent on the load and the input voltage At full load, 10 V at 45 mA is available for the hazardous area application.

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Rated voltage	20 ... 35 V DC , loop powered
Power dissipation	< 1.05 W (≤ 30 V)
Connection side	control side

Connection	terminals 7, 8
Rated voltage	20 ... 35 V DC
Current	72 mA at 20 V input voltage, load = 220 Ω 50 mA at 35 V input voltage, load = 220 Ω
Inrush current	≤ 200 mA after 100 µs
Internal resistor	max. 282 Ω

KFD0-SD2-Ex1.1045 Solenoid Driver With Output Signal Energized/De-energized Delay Single Operation Typ. 1.7 Ms/50 Μs 1

https://www.achieversinstruments.com/ and Emerson Hand Communicator TREXCHPNAWS1S, rosemount 0068

KFD0-SD2-Ex1.1045 Solenoid Driver With Output Signal Energized/De-energized Delay Single Operation Typ. 1.7 Ms/50 Μs 3

Achievers Automation Limited is a well-established player in the field of industrial automation, boasting a rich and extensive experience of more than 12 years.

Over these years, the company has dedicated itself to dealing with a comprehensive and complete range of industrial automation components and instruments. With an unwavering commitment to excellence, the team at Achievers always goes the extra mile, striving their absolute best to provide top-notch quality goods and highly efficient, timely services to our esteemed and valued customers.

These customers hail from over 45 countries across the globe, spanning different continents and diverse industrial landscapes.

FAQ of Achievers

Q:Are preferential prices available?

A: We provide customers with competitive product prices and the biggest discounts through a long-term cooperative supply chain system.

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT,UPS with good price.

Q:What is the warranty of goods?

A: One-year Warranty.

Q:Which are the best-selling products?

A: Many brands of products have been supplied to customers from all over the world for a long time. For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W,Emerson Hand Communicator TREXCHPNAWS1S,xnx transmitter honeywell
